Description

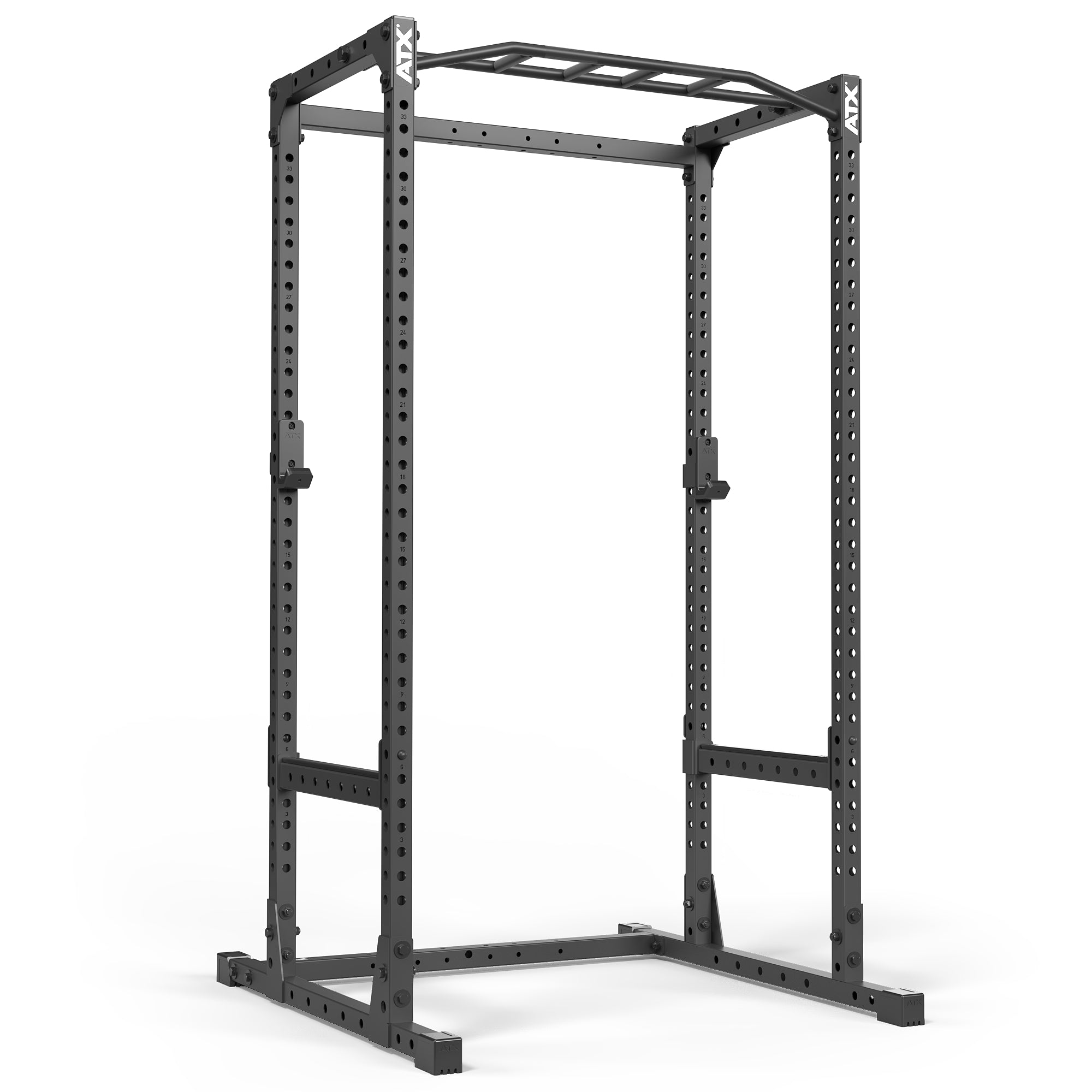

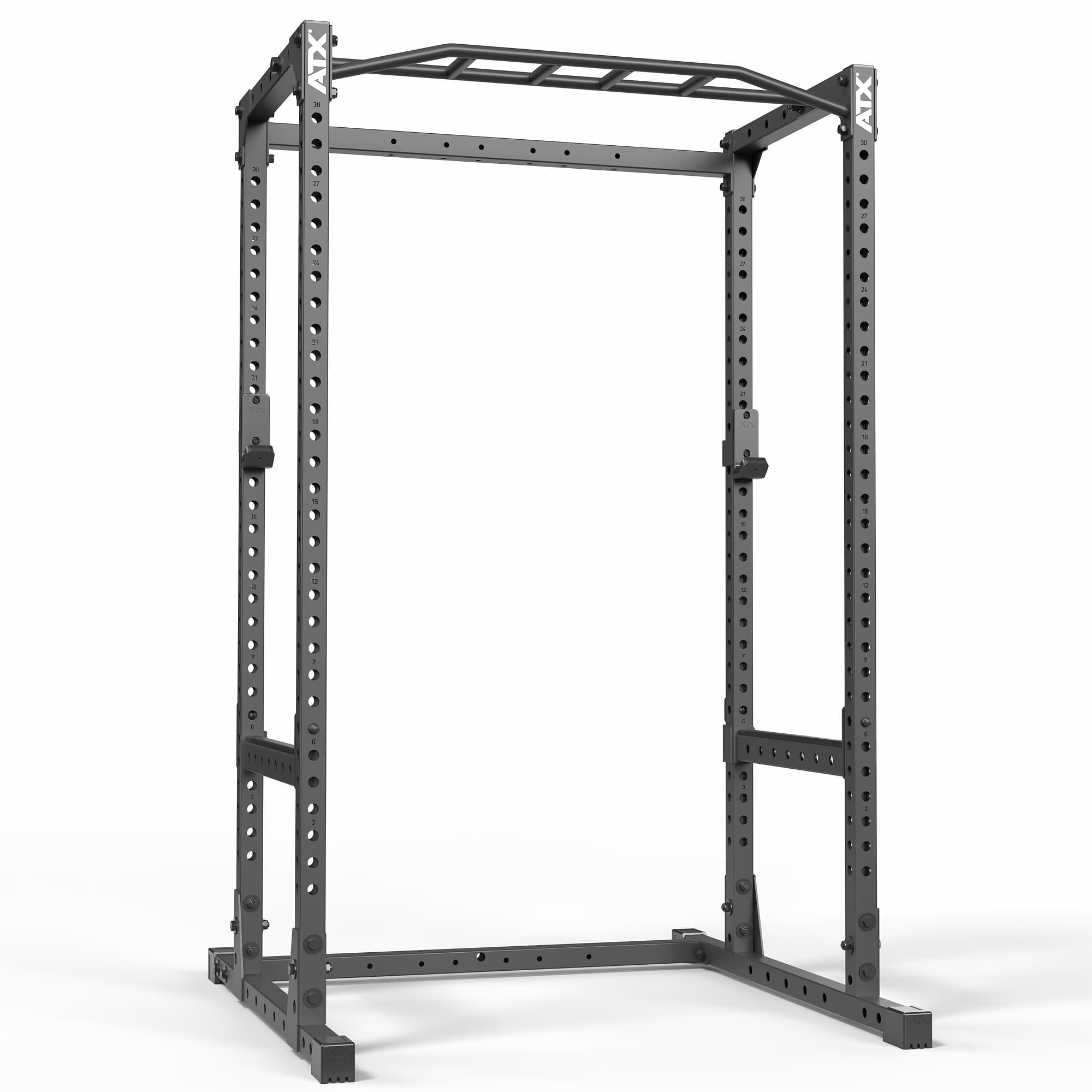

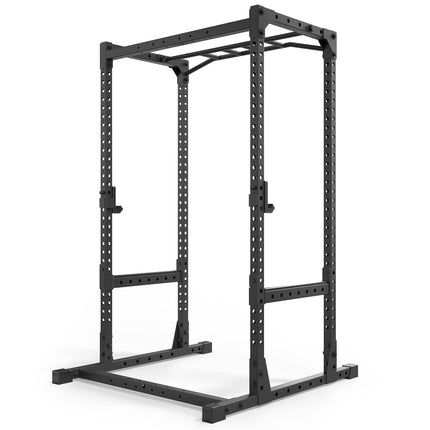

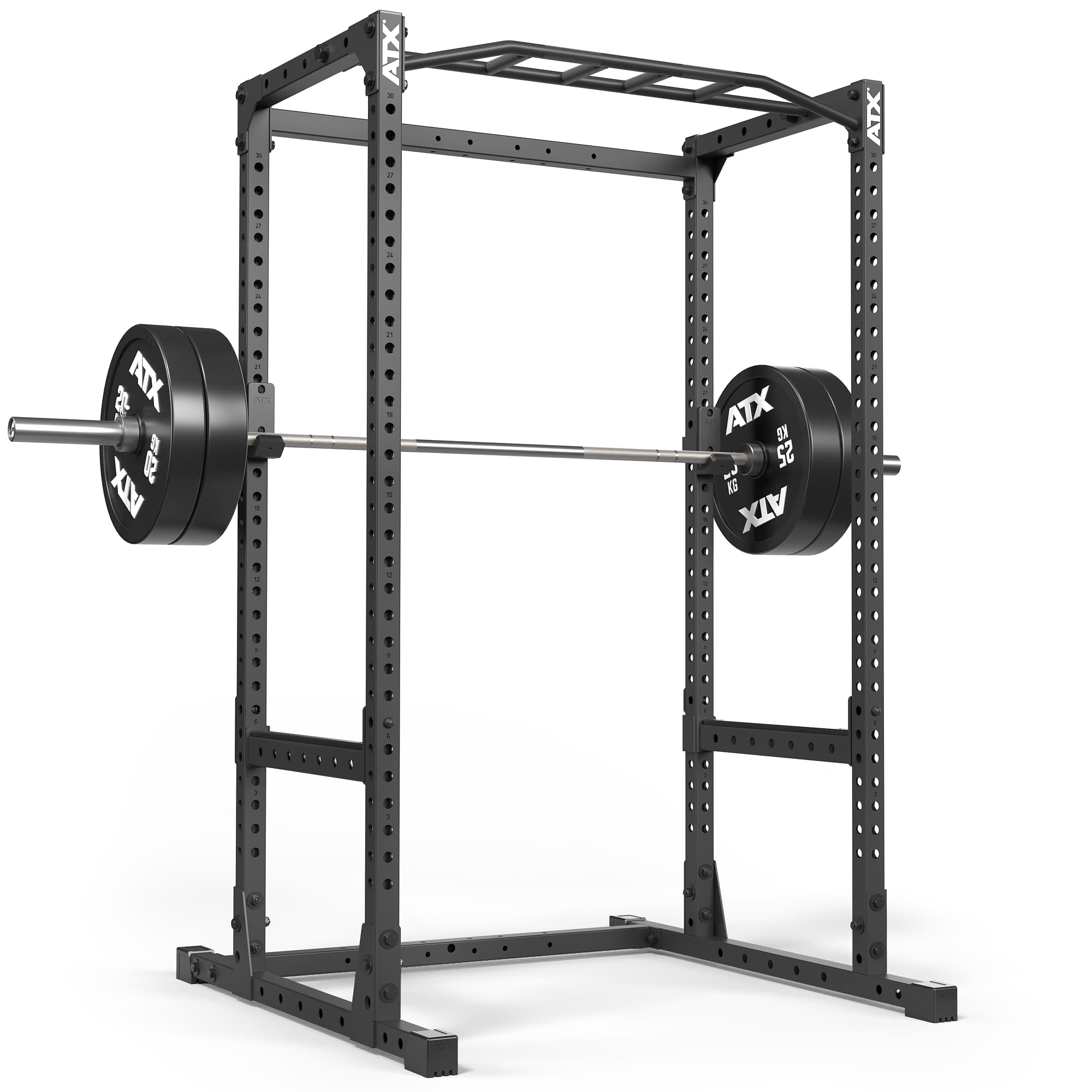

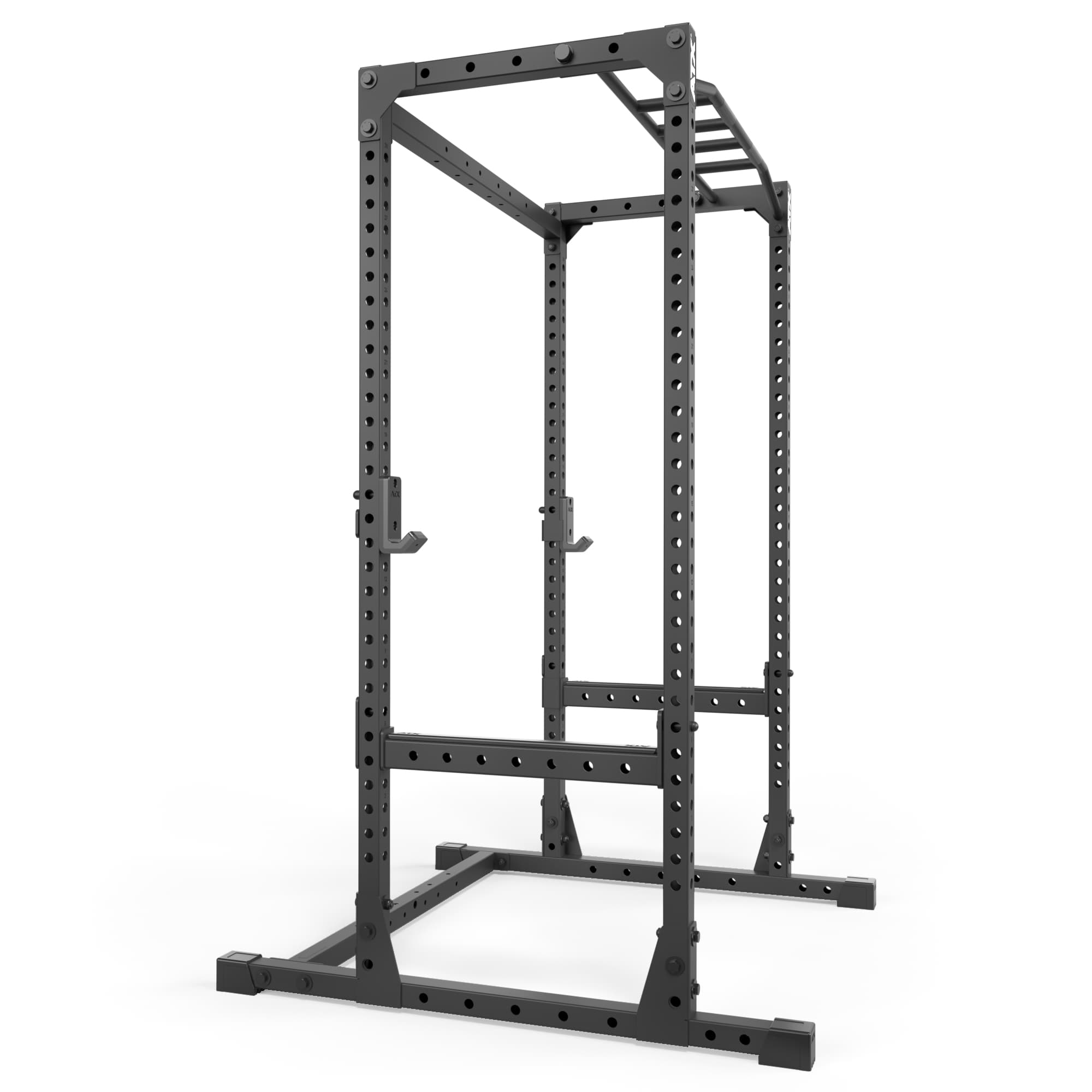

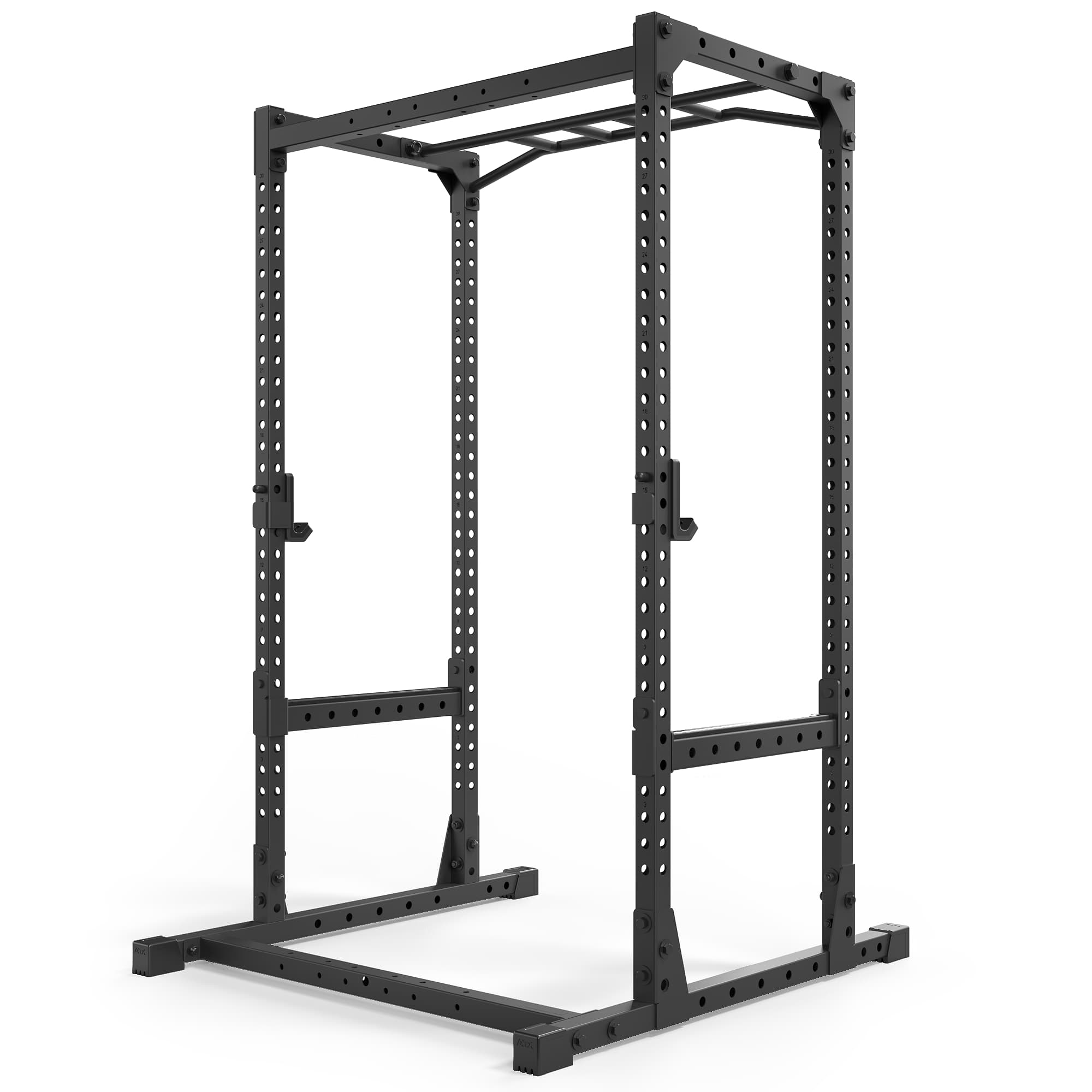

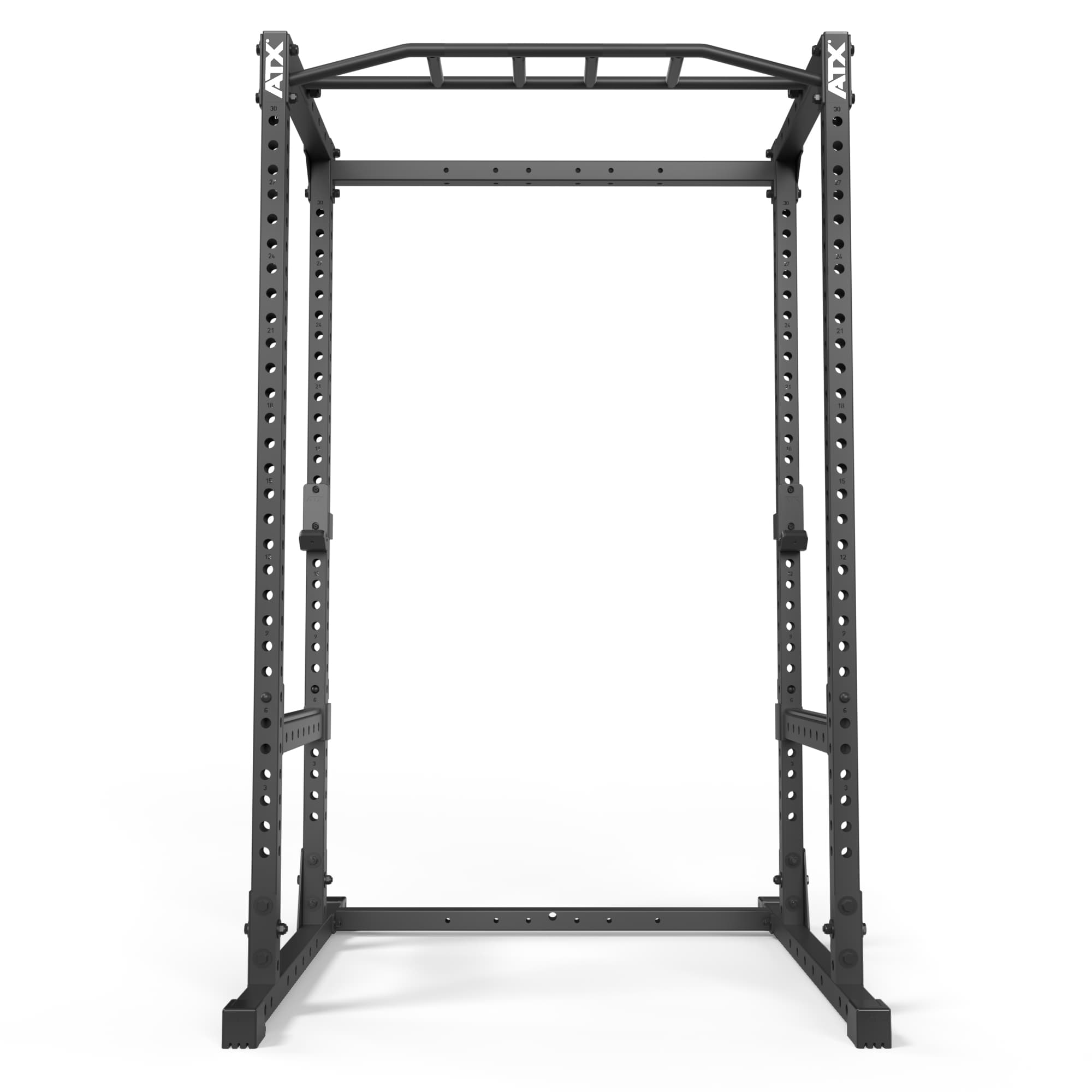

The ATX Fitness Power Rack 500 Series is a compact power rack designed for home gym use, ideal for those who want to create a safe and professional training environment at an affordable price. Compared to typical commercial-grade power racks, this model is lighter, easier to assemble, and perfectly suited for installation in residential spaces such as apartments.
This rack is available in two height options: the standard 215 cm and the compact 195 cm version. The 195 cm model is particularly well-suited for garages or rooms with low ceilings.

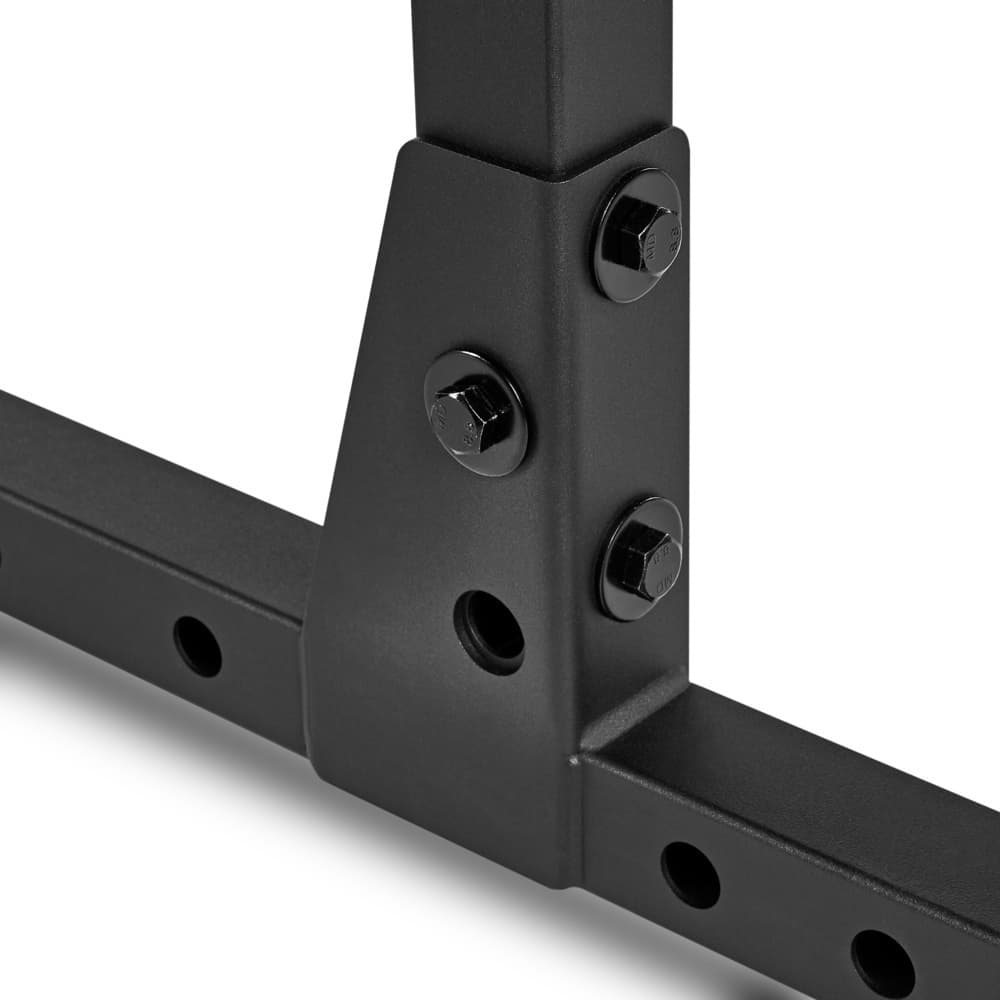

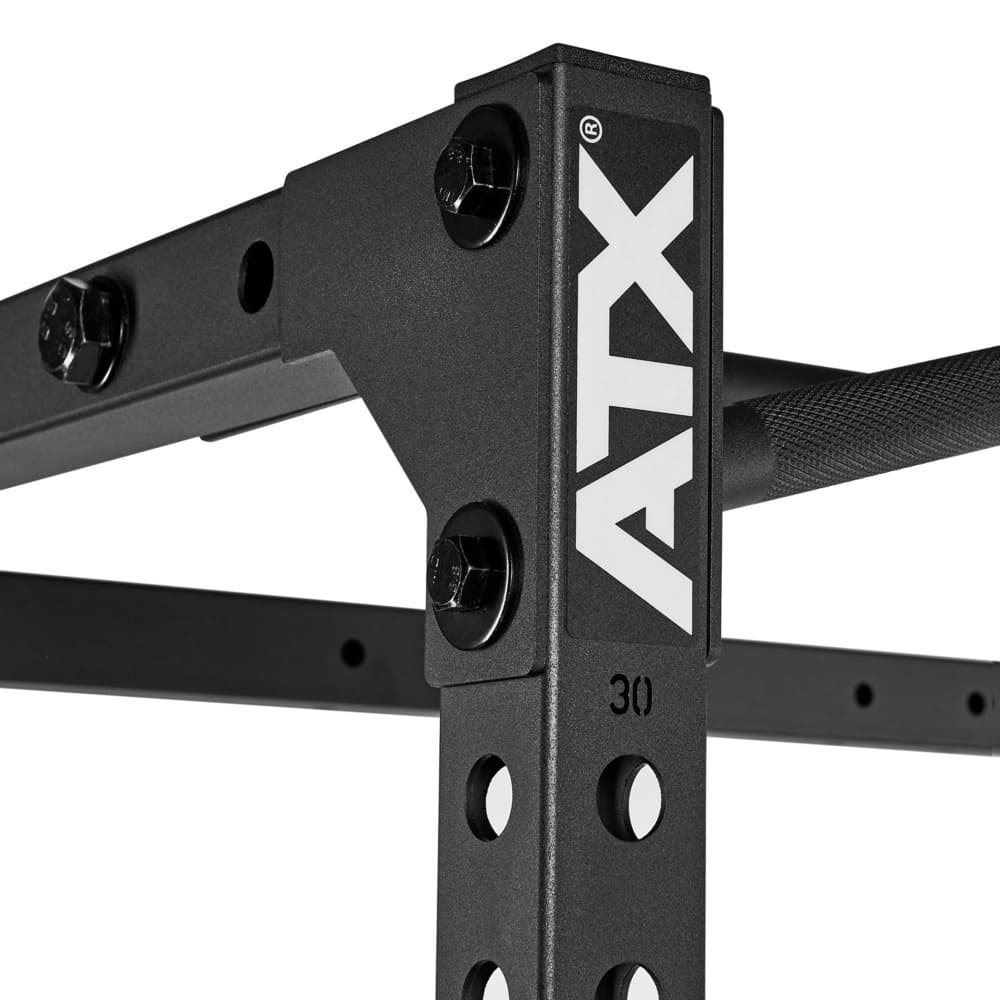

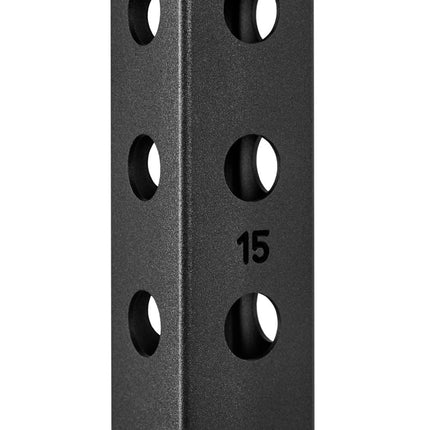

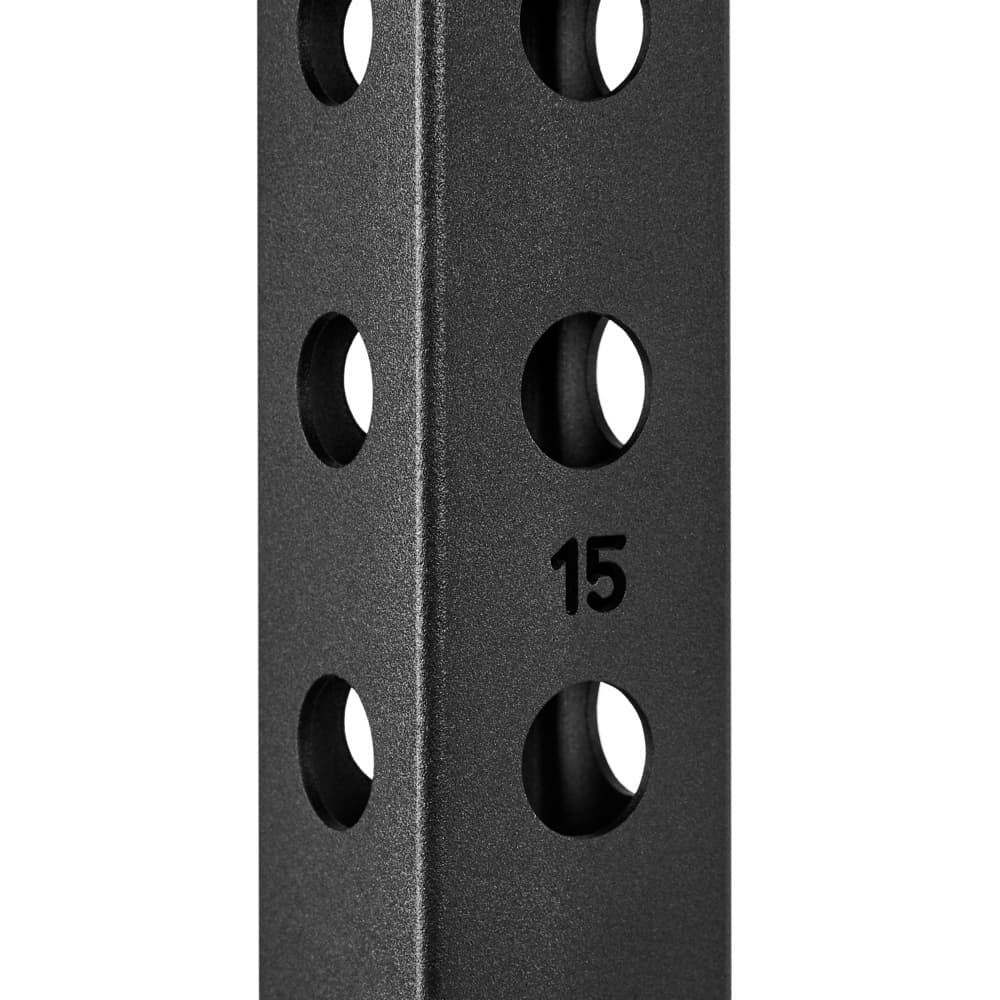

The frame is constructed from durable 50 × 50 × 2 mm steel tubing, with four uprights securely fixed to the base frame for enhanced stability. The hole spacing is set at 5 cm intervals, enabling precise height adjustment of the J-cups and safety spotters. The rack offers 34 height positions (30 positions for the 195 cm model).

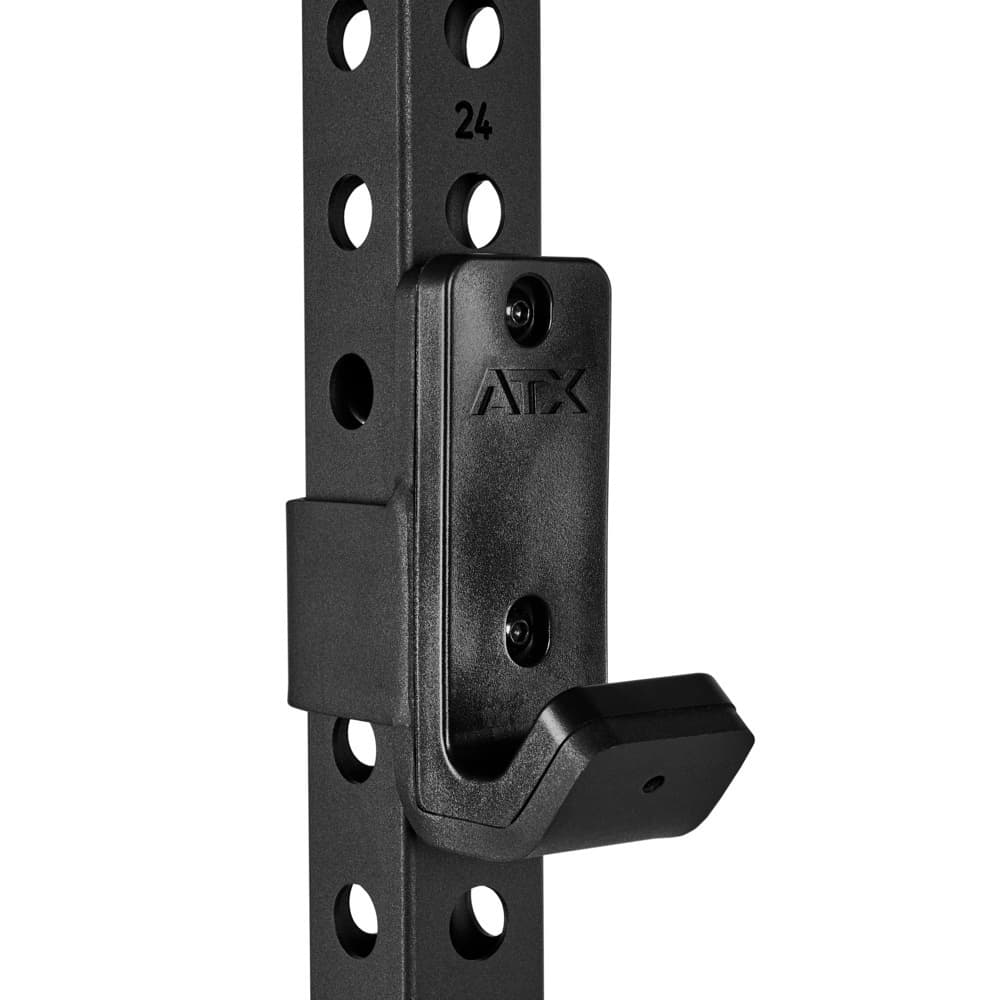

As standard, the rack is equipped with J-cups, a flip-down safety system, and a multi-grip pull-up bar. The J-cups are constructed from 10 mm thick steel for superior strength and durability, while the rounded hook design prevents the barbell from shifting or rolling unintentionally.

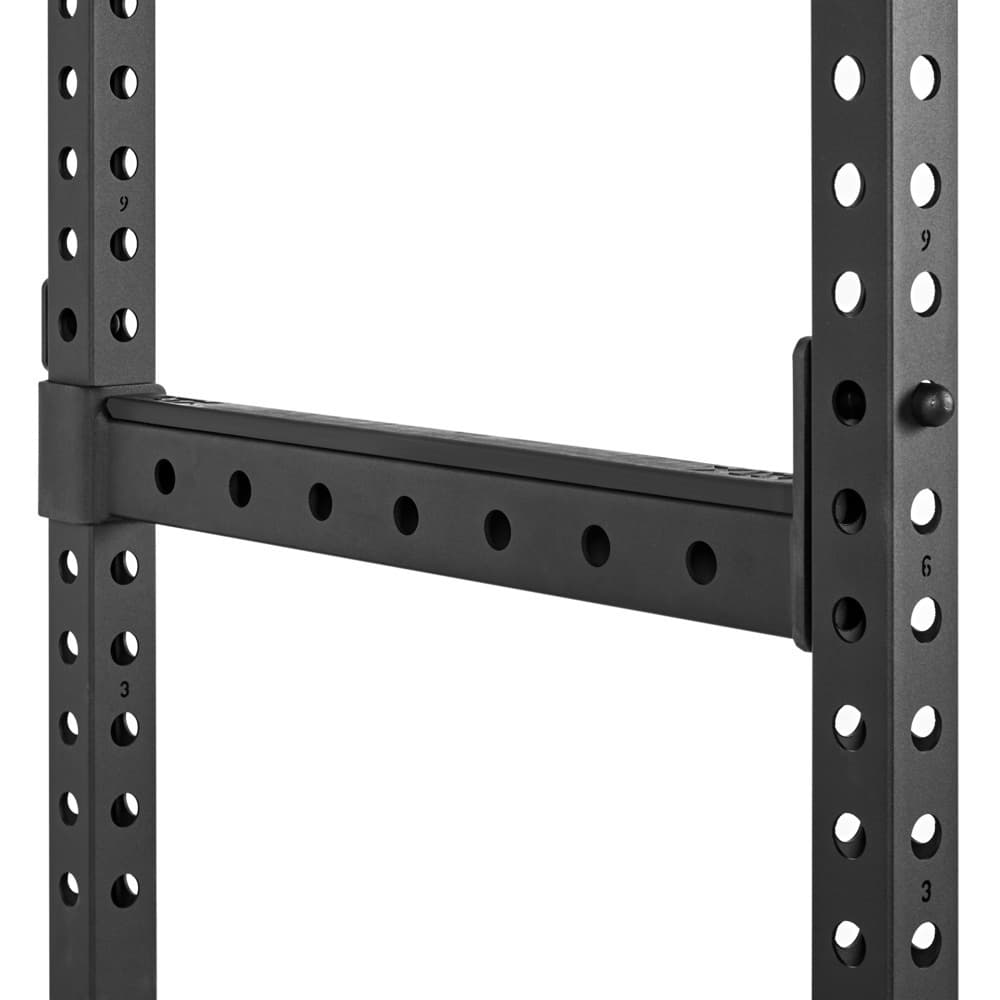

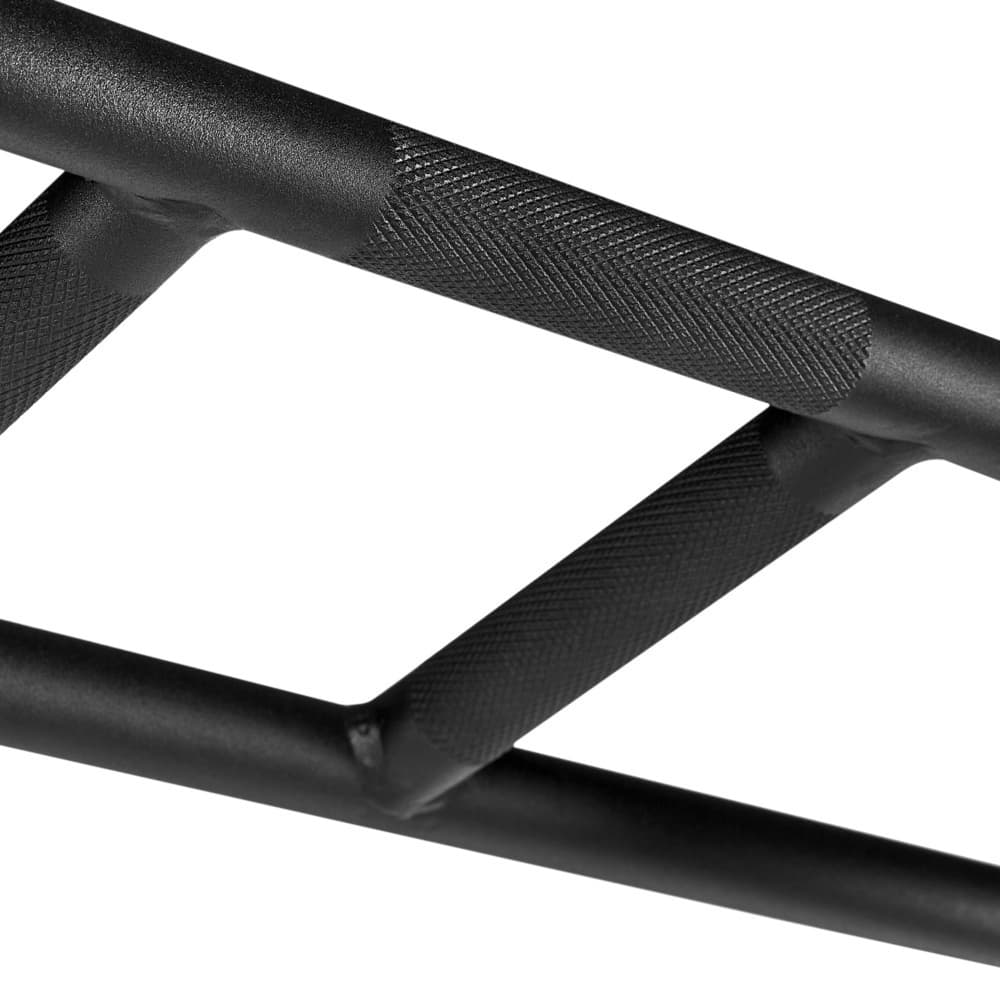

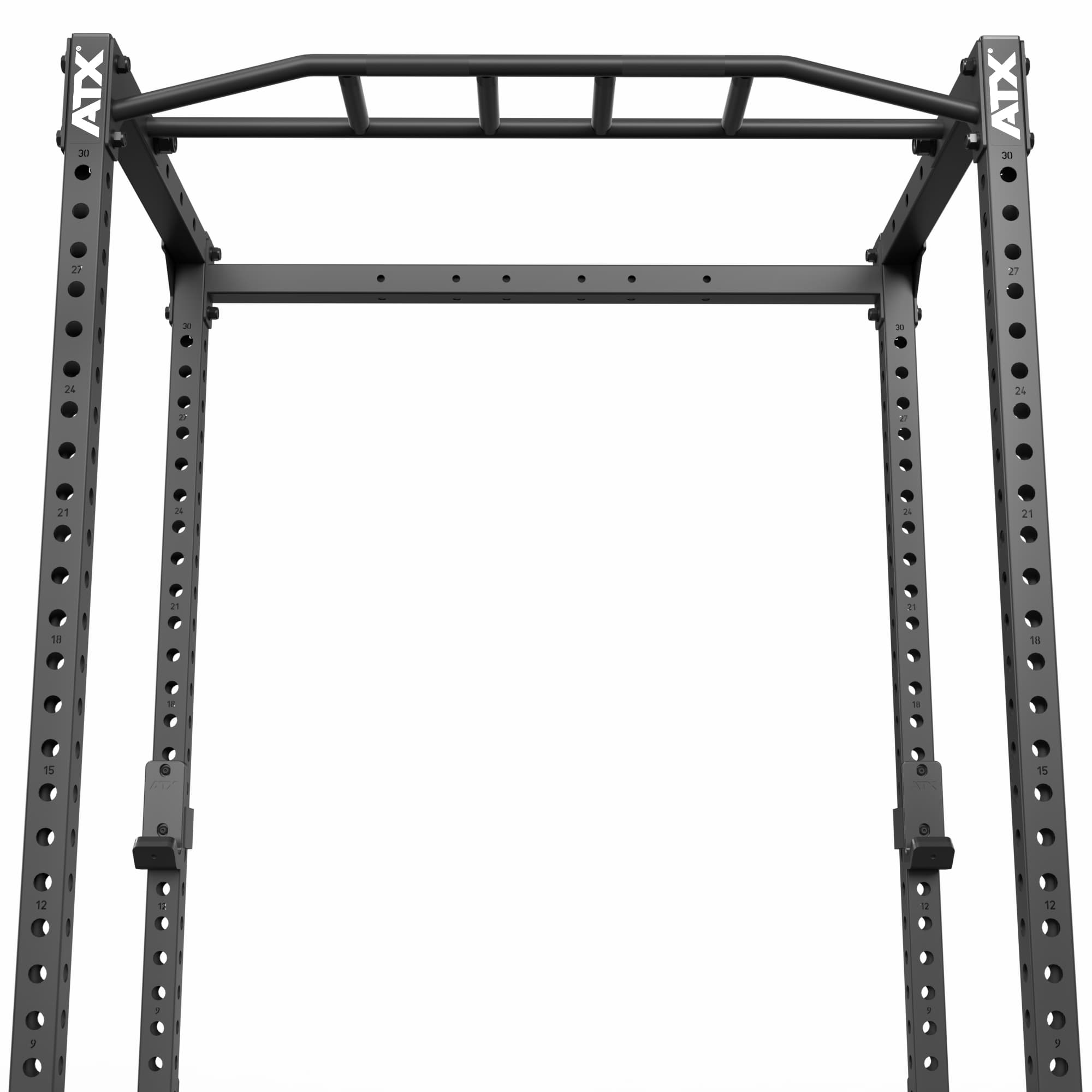

The flip-down safety system has a load capacity of up to 400 kg and features a roll-off design for quick and easy installation or removal. The multi-grip pull-up bar has a 27 mm diameter and a textured knurled surface to provide a secure, non-slip grip.
While these are the standard specifications, the rack can be further expanded with a wide range of optional accessories, including lat pull & low row attachment, lateral raise unit, dip bars, landmine attachment, and roller J-cups, allowing for an even broader range of training possibilities.

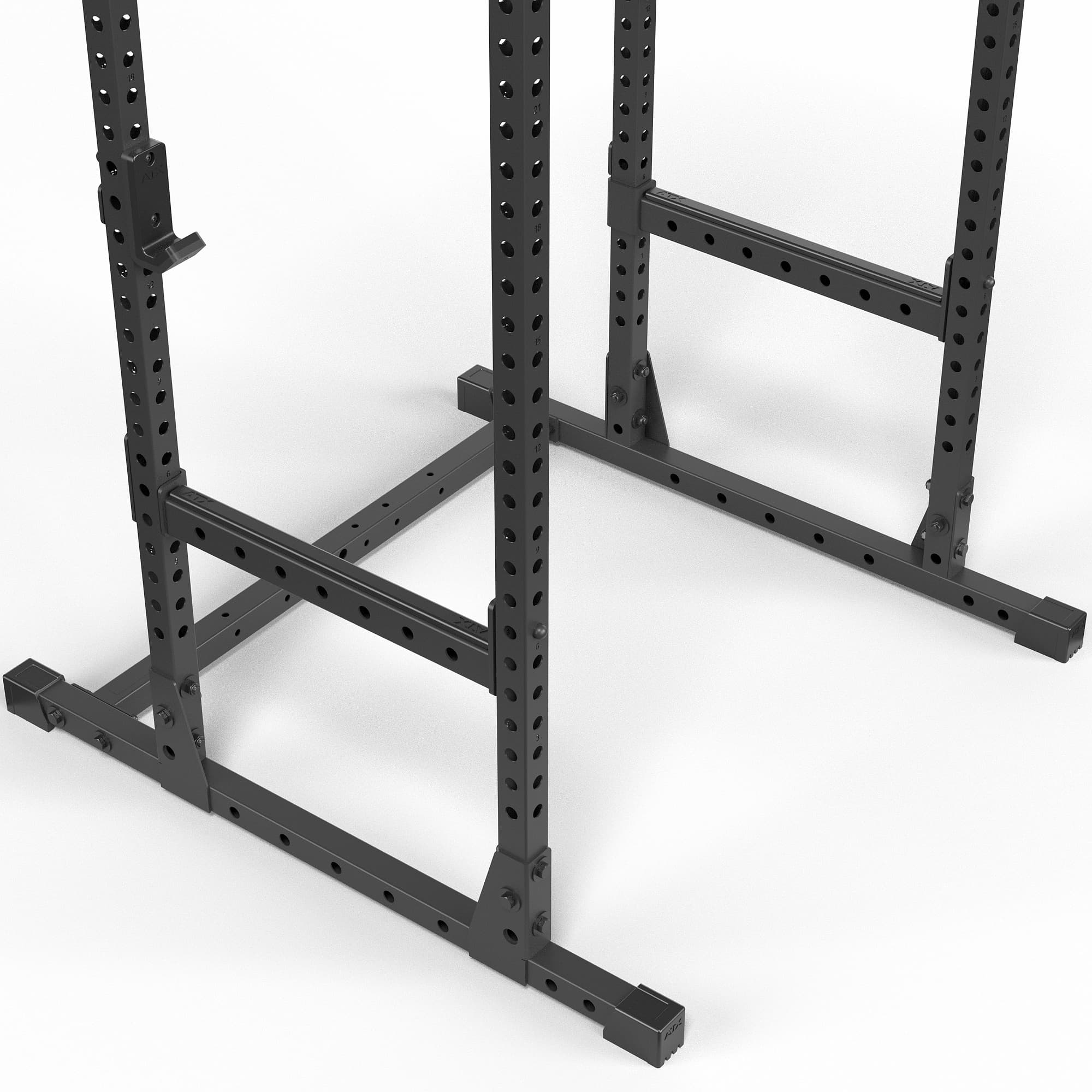

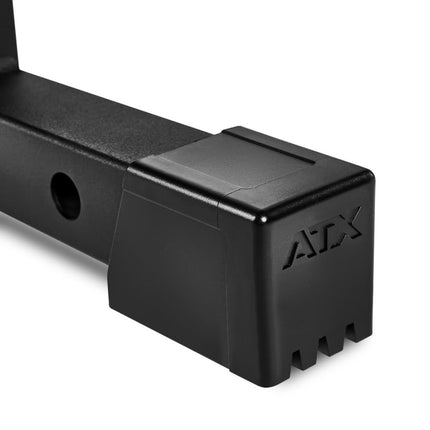

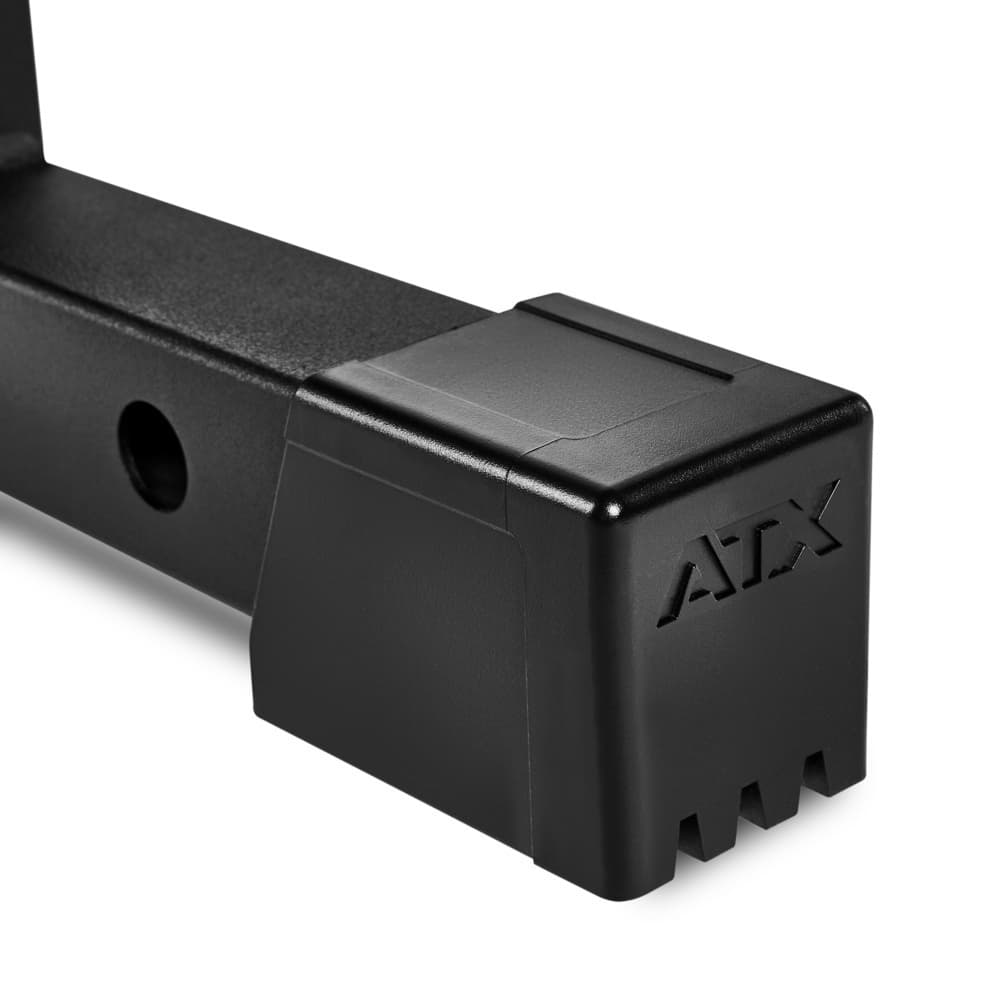

The base frame is also pre-drilled for attaching band pegs or plate horns. Additionally, the rack is fitted with rubber foot pads to prevent slipping and protect flooring surfaces.
*Assembly required. ATX products do not include tools, so please prepare the necessary tools separately.

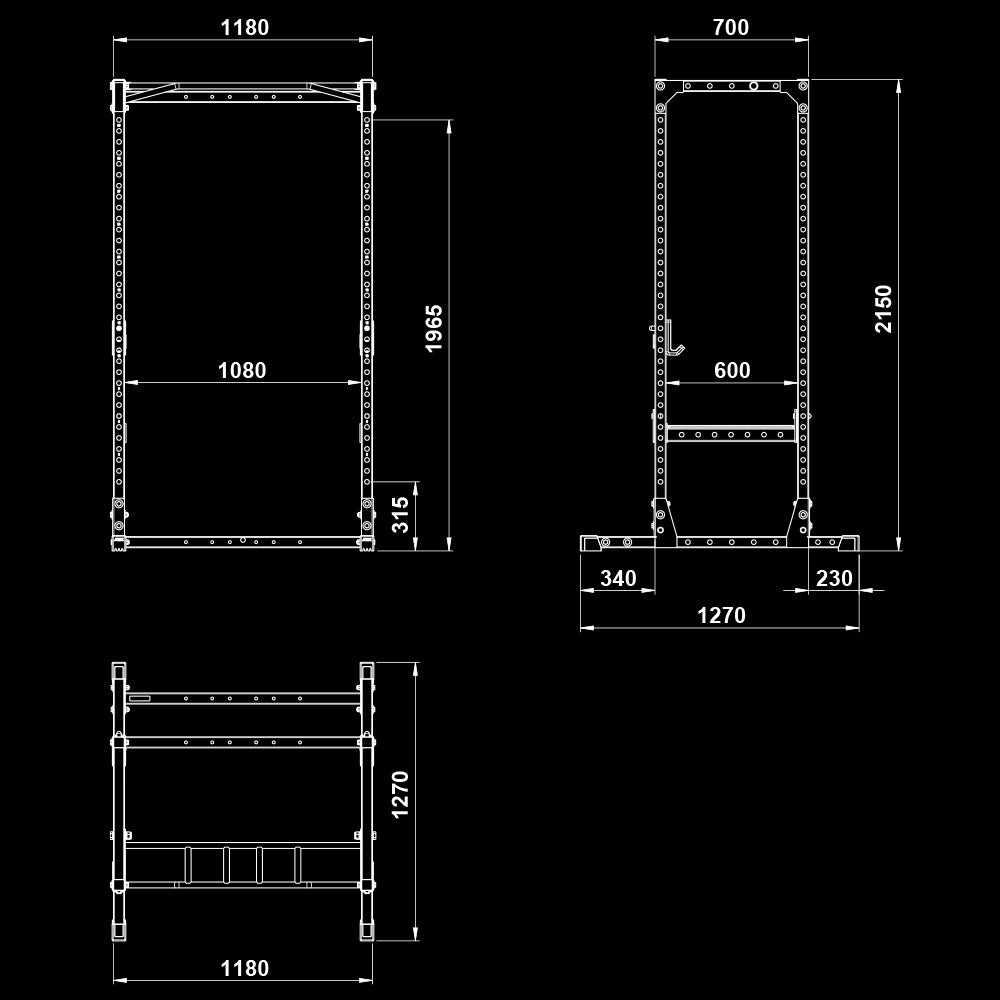

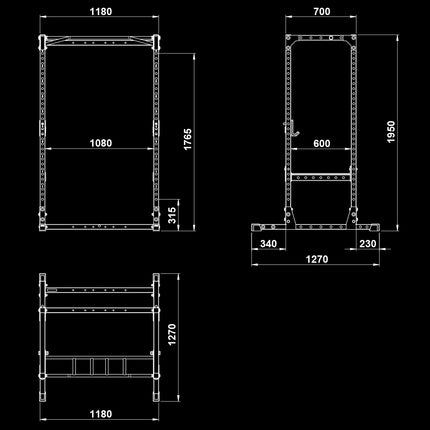

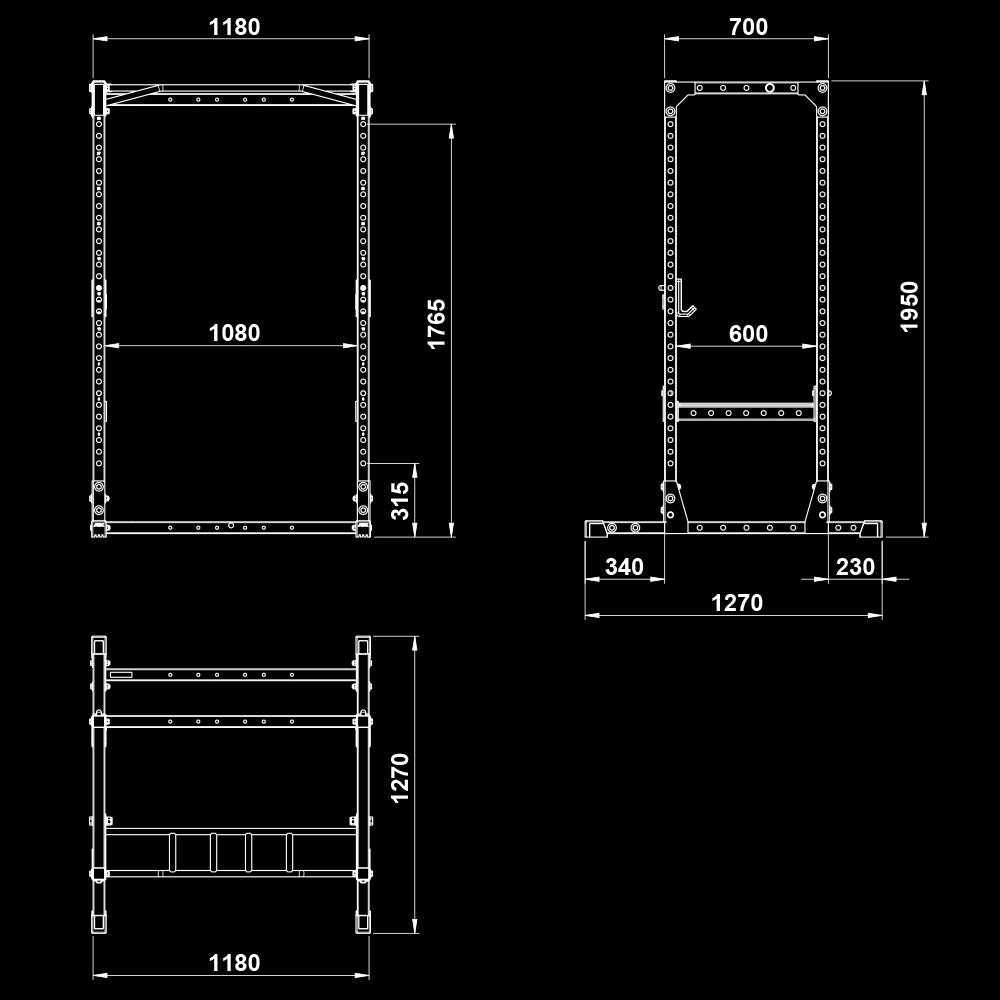

Product specifications
| Weight |
195cm: 63.0kg
215cm: 65.2kg |
| Height |
195cm or 215cm |
| Width |
External dimensions: 118cm |
| Depth |
127cm |
| Hole size |
21mm |
| Hole Spacing |
50mm |
| Material |
50 x 50 x 2mm steel |
| Surface Treatment |
Powder Coating |
| Load capacity (stationary) |
J-cup: 500kg / Pair safety: 400kg / Pair pull-up bar: 200kg |
