Description

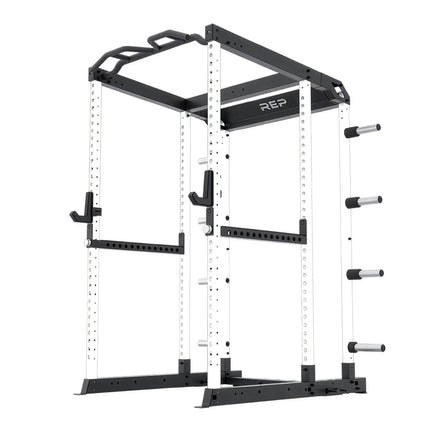

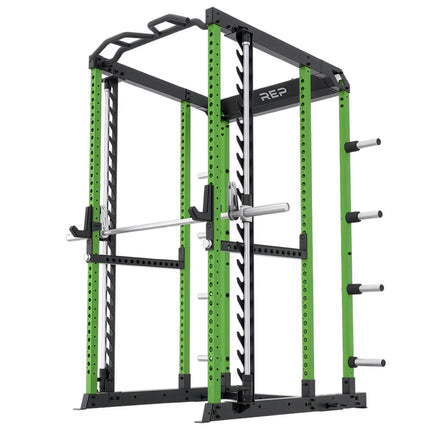

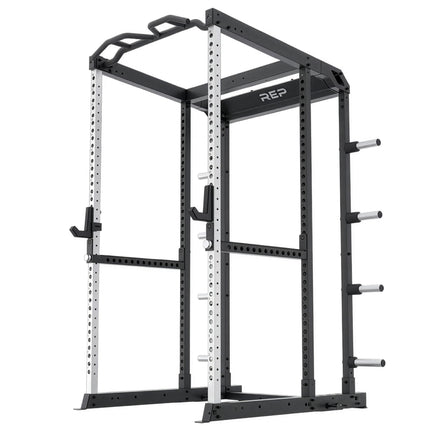

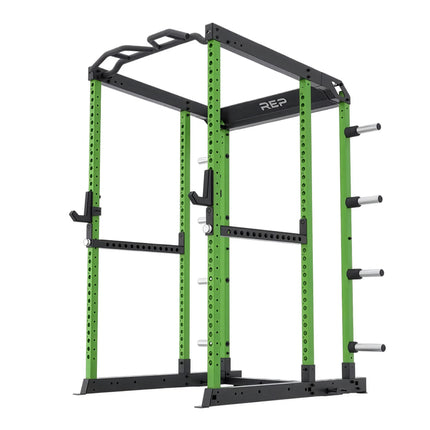

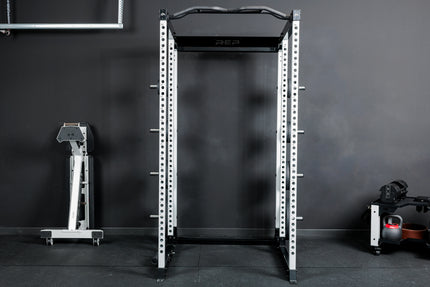

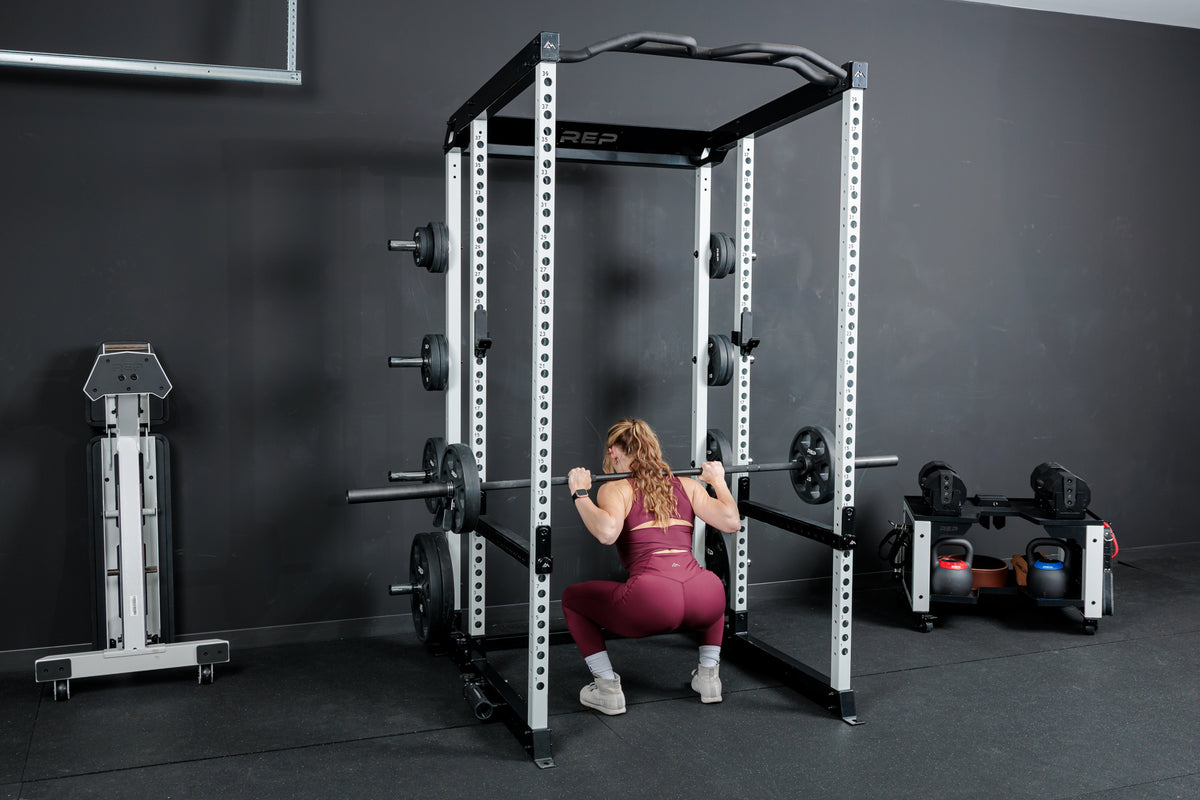

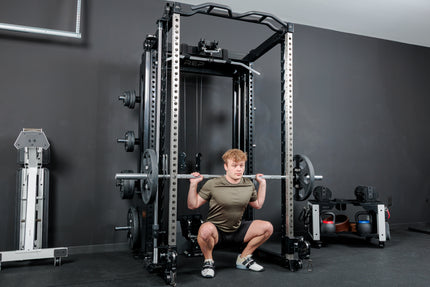

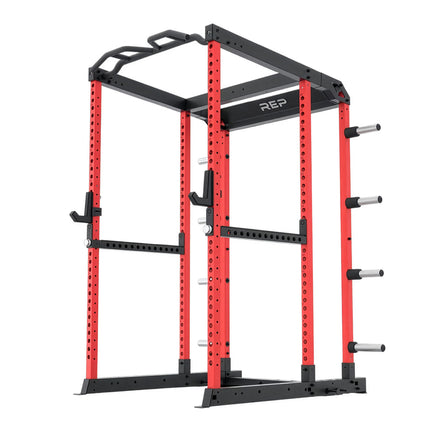

The Altitude™ Power Rack is a next-generation all-in-one rack system that combines the simplicity of an entry-level model with the expandability of a premium-grade rack. REP Fitness has leveraged its extensive product development expertise to create a versatile rack system that supports a wide range of exercises, even in limited spaces, while remaining accessible at a mid-range price point.

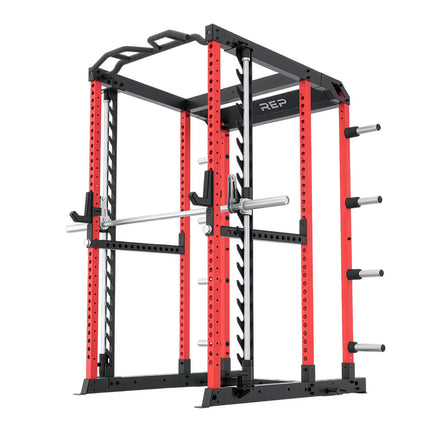

Designed for home gym use, this rack features a durable 2x2-inch 14-gauge steel frame with a weight capacity of 318 kg (750 lb). It is available in two height options—211 cm and 229 cm—and comes in seven color choices.

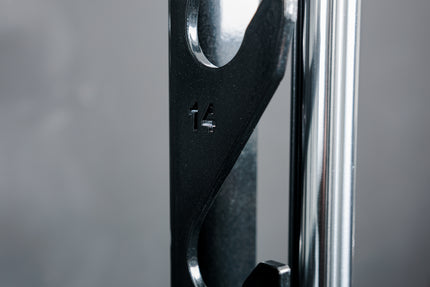

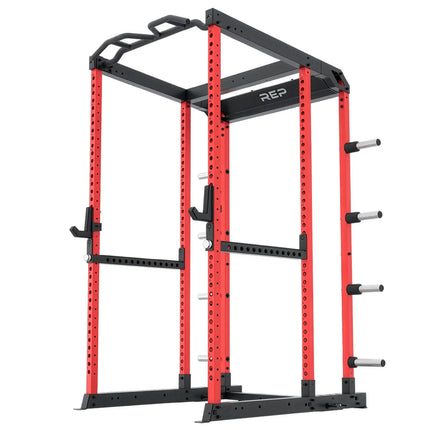

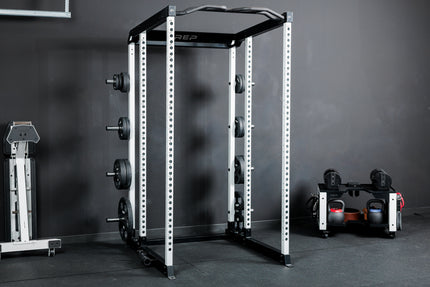

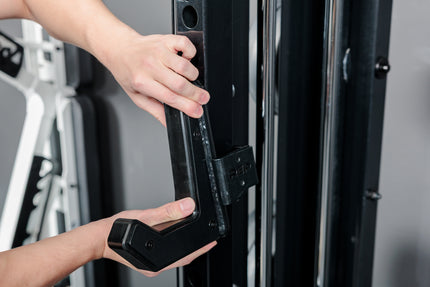

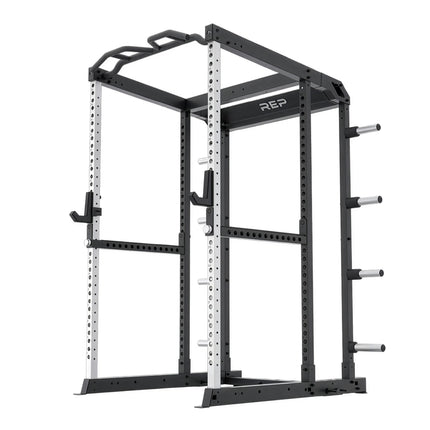

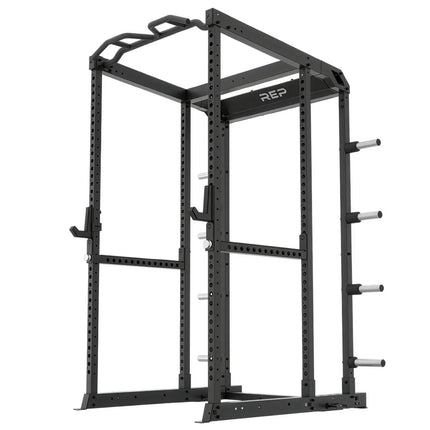

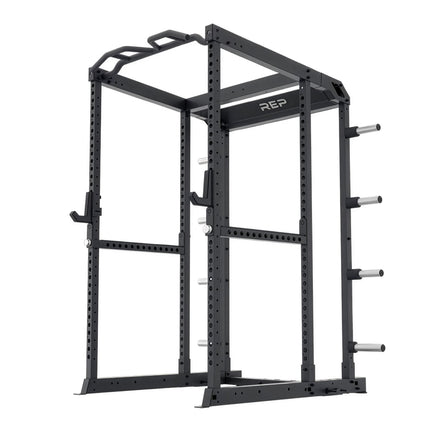

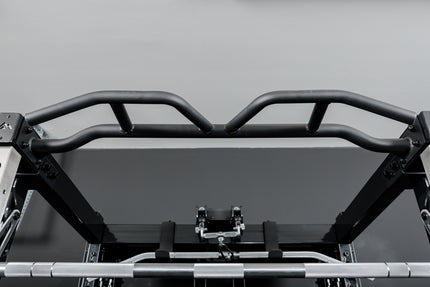

The rack includes six uprights and comes equipped with a multi-grip pull-up bar, flat sandwich J-cups, flip-down safeties, and eight weight horns.

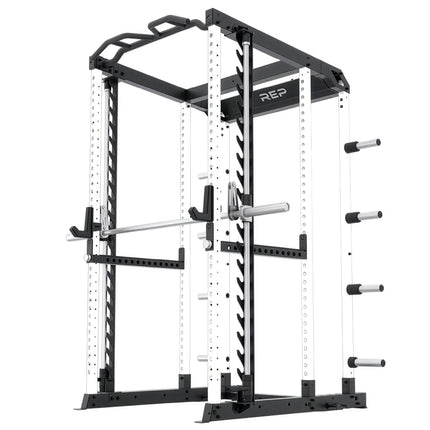

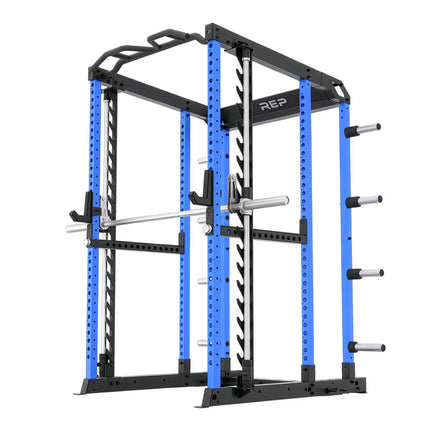

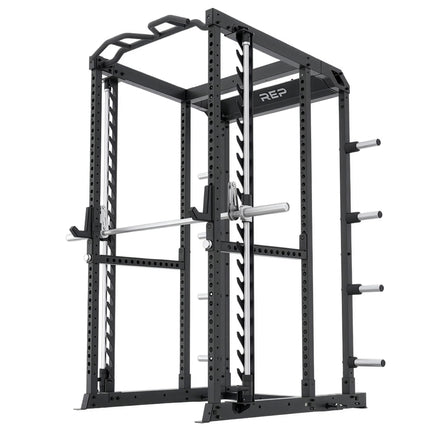

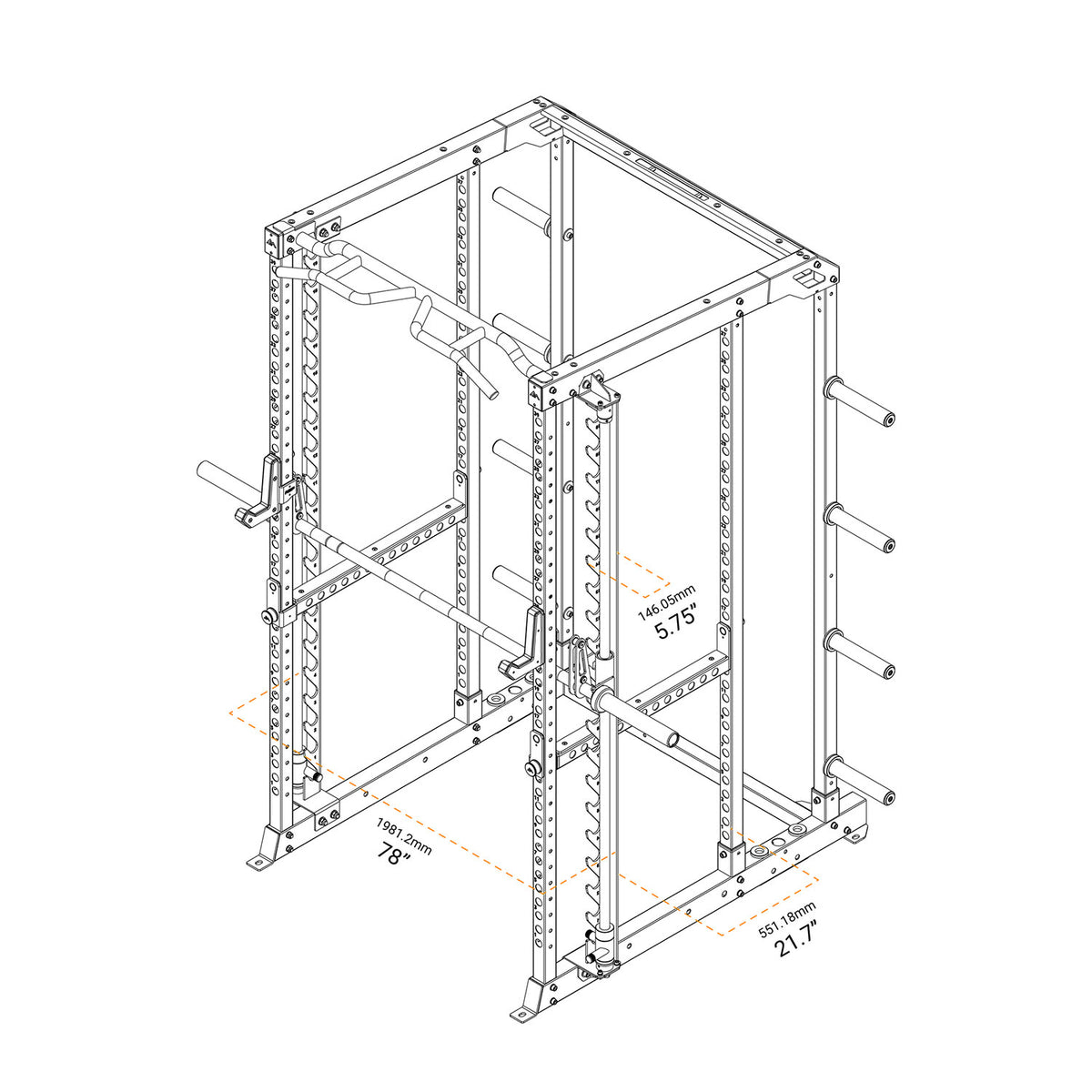

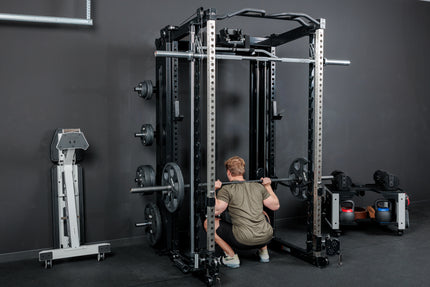

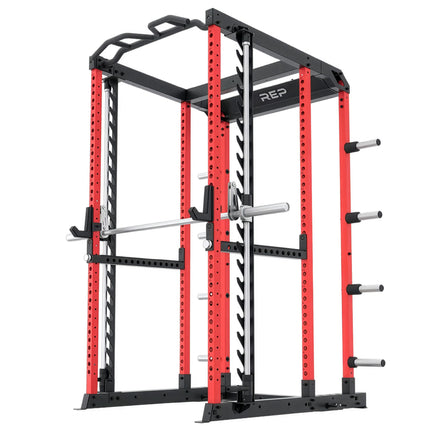

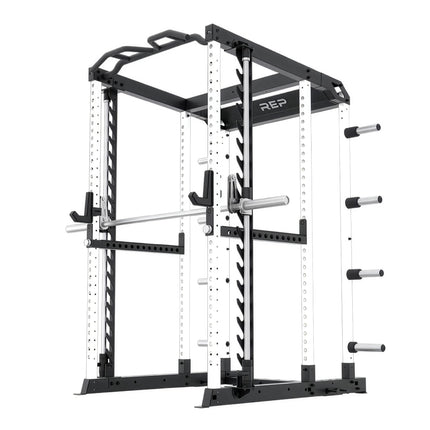

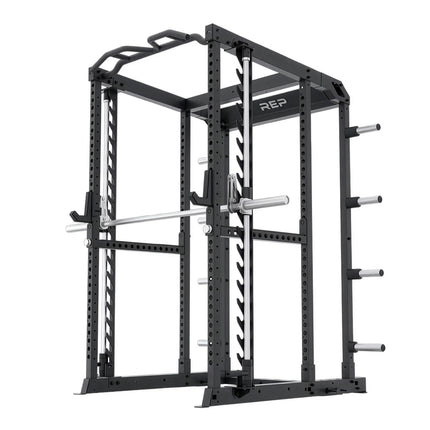

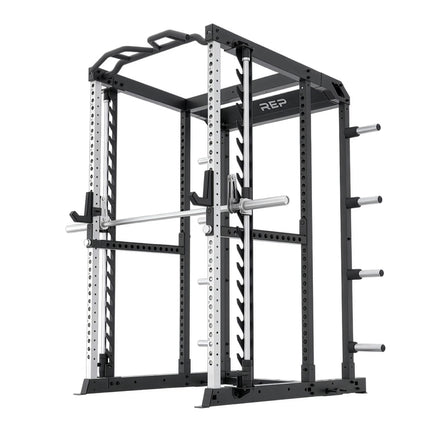

Expansion Option 1: Altitude™ Smith Machine Attachment
This premium Smith machine attachment is engineered specifically for the Altitude™ Power Rack. Built to support up to 400 lb (181 kg), it delivers the safety, precision, and versatility you expect from a commercial-grade Smith machine in a compact, space-efficient design.
The barbell weighs 15 kg, features a 28.5 mm shaft diameter, and includes knurling and end caps inspired by REP’s Colorado Bar. High-quality bearings ensure exceptionally smooth, low-friction performance.

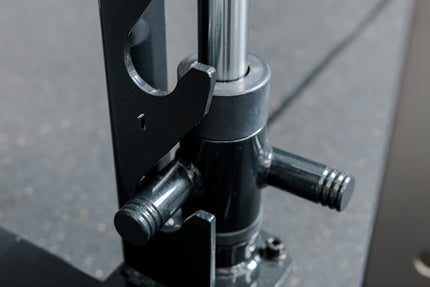

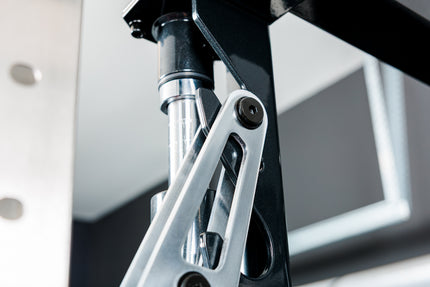

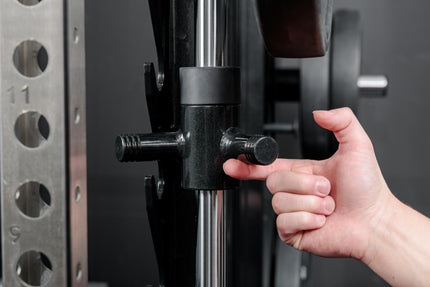

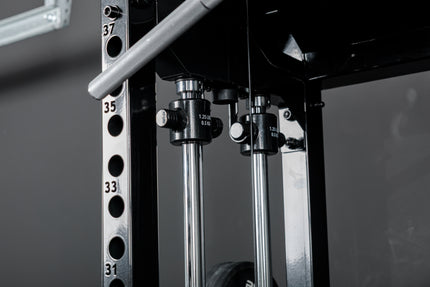

The guide rods are equipped with a rotation stopper that functions as an added safety feature, ensuring stable and secure operation across all exercises. The design also prevents metal-on-metal contact, eliminating unwanted noise during training.

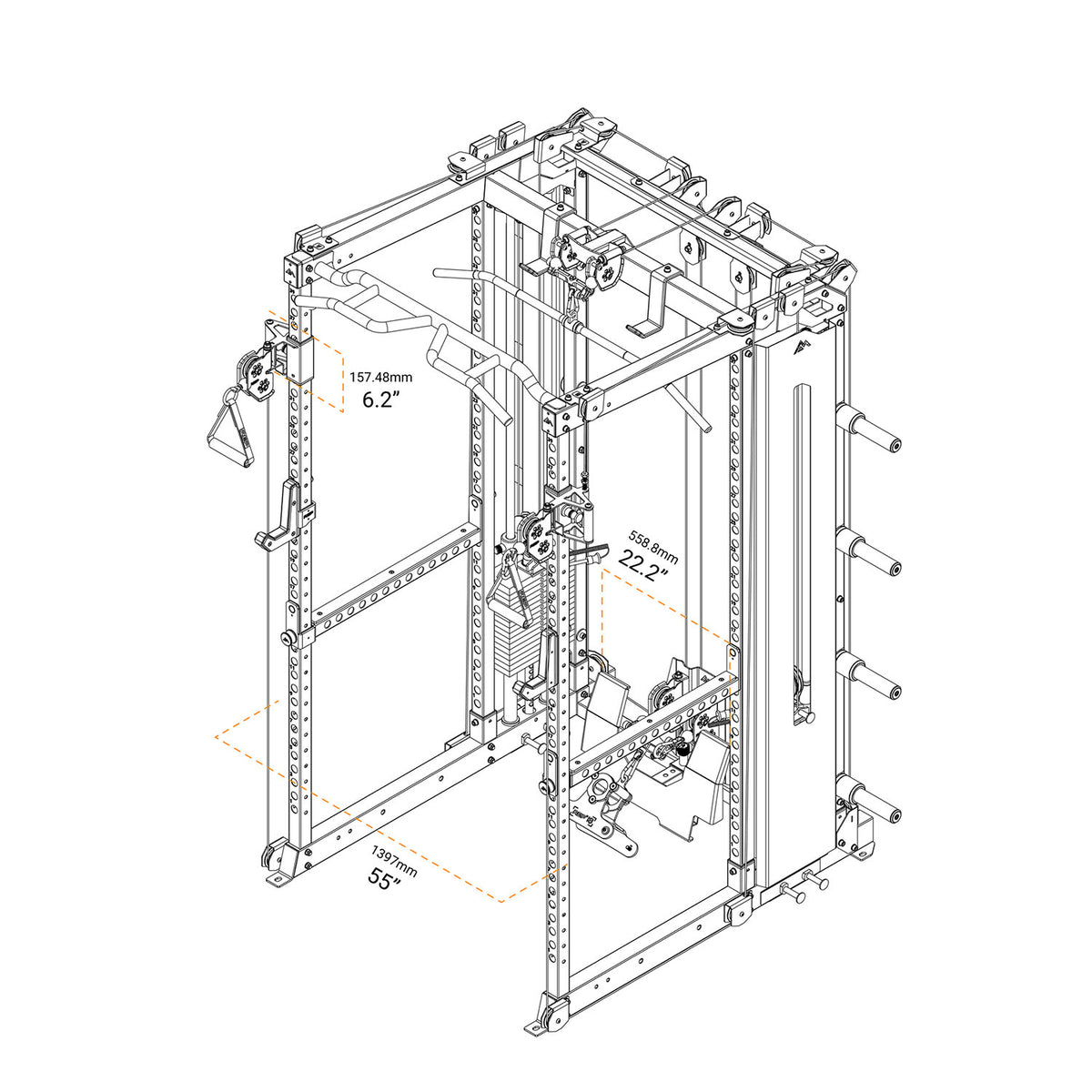

Expansion Option 2: Altitude™ Functional Trainer Attachment

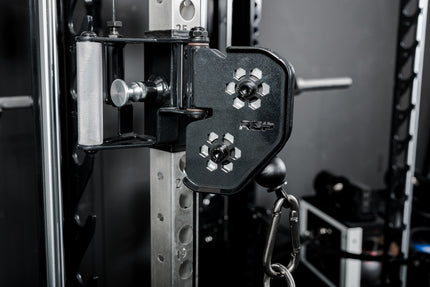

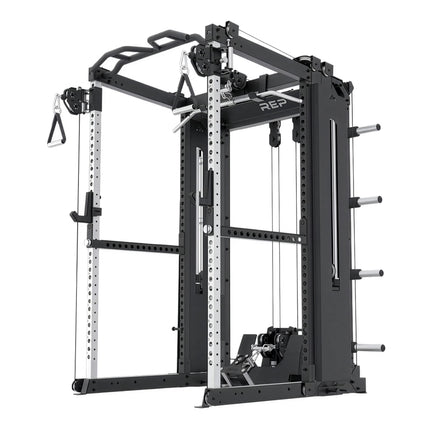

This expansion unit transforms the Altitude™ Power Rack into a complete functional training system, enabling a wide range of exercises such as cable flys, triceps pressdowns, lat pulldowns, and rows—all on a single machine.

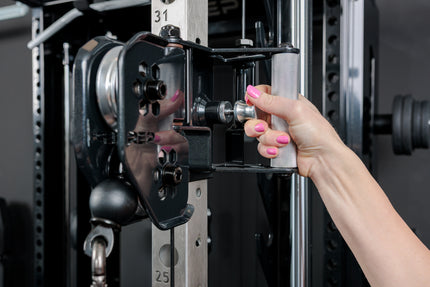

The system features dual 77 kg weight stacks with a 2:1 pulley ratio, providing an effective resistance of 38.5 kg per side. Each stack also includes two 1.13 kg micro weights (0.57 kg effective resistance), allowing for precise load adjustments. Optional upgrades are available to increase each stack to 122 kg (61 kg effective resistance), making it suitable for intermediate to advanced users.
Adding the upcoming Altitude™ Leg Roller enhances stability during lat pulldowns and enables additional exercises such as Bulgarian split squats. The footplate’s side-cut design also allows a REP bench (AB-5200 2.0, BlackWing™ Adjustable Bench, AB-3000 2.0, or Nighthawk™) to slide fully to the rear of the rack, ensuring optimal positioning for both incline and flat bench presses.
What's included with each rack configuration

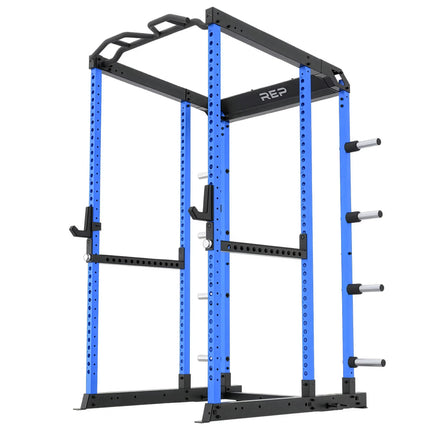

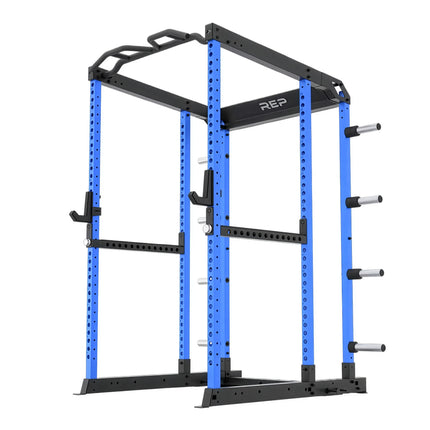

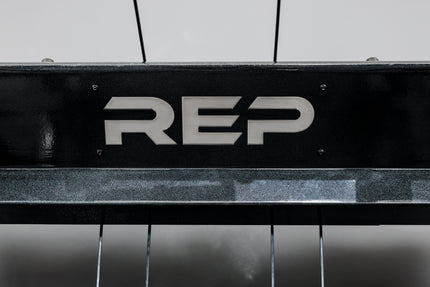

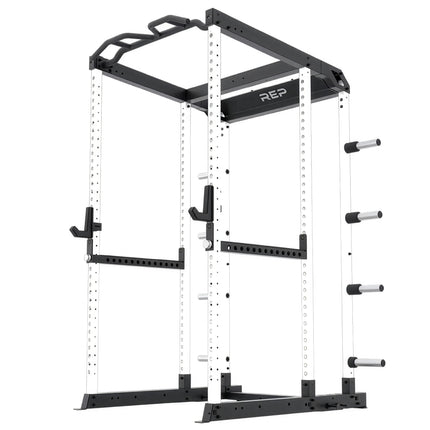

Rack only: Support posts, base frame, logo plate cross member, top cross member, multi-grip pull-up bar, flat sandwich J-cups, flip-down safeties, and four pairs of weight horns
Rack + Smith machine: All rack components listed above, plus the Smith machine attachment

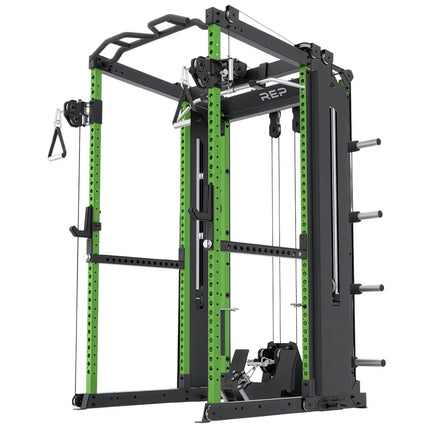

Rack + Functional Trainer: All rack components listed above, plus the functional trainer attachment (including weight stack cover), lat pulldown bar, straight bar, two stack cable connection clips, four carabiners, Atlas™ close-grip cable and landmine attachment, and two knurled D-handles

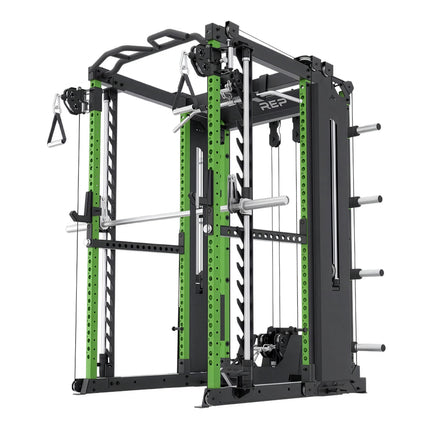

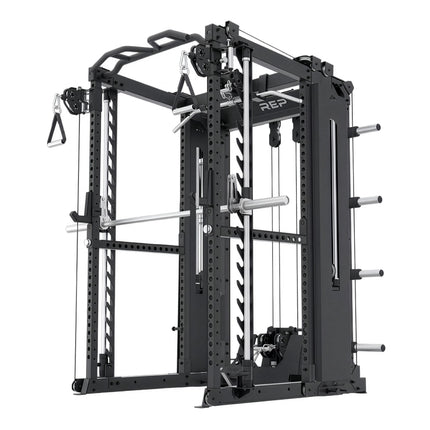

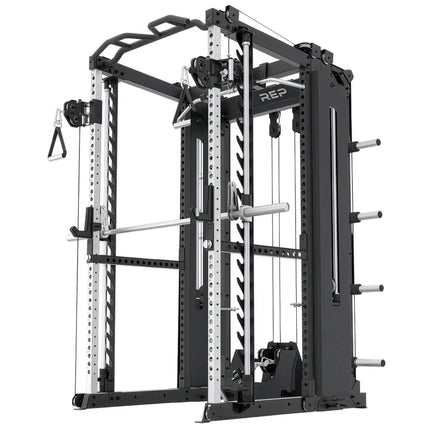

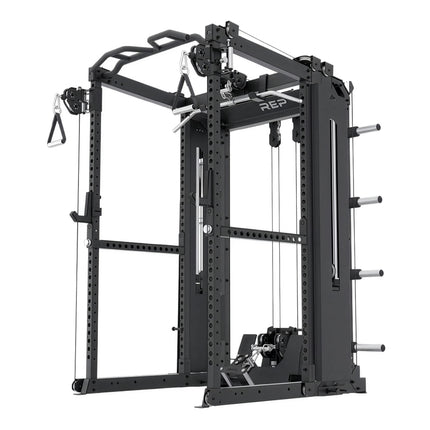

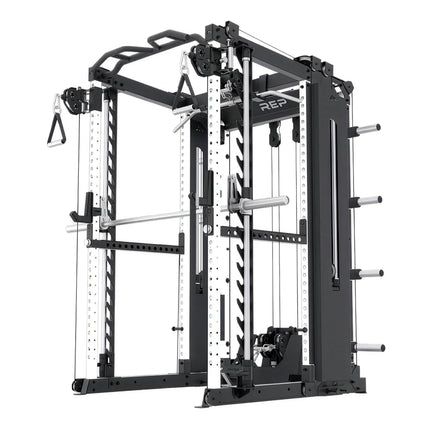

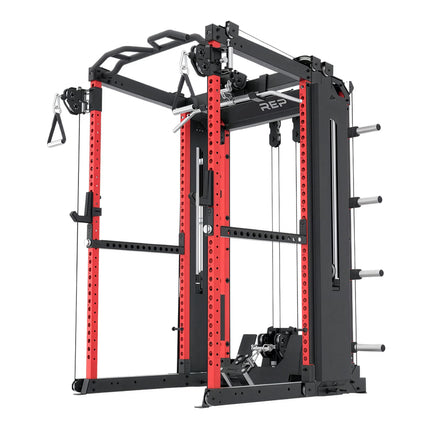

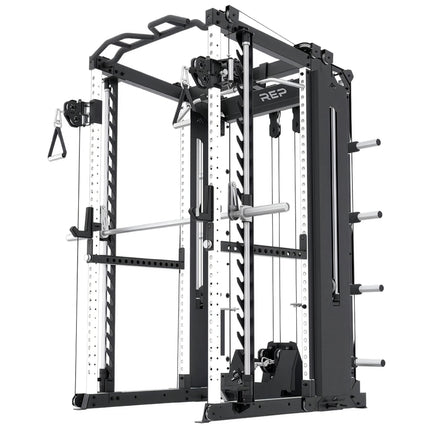

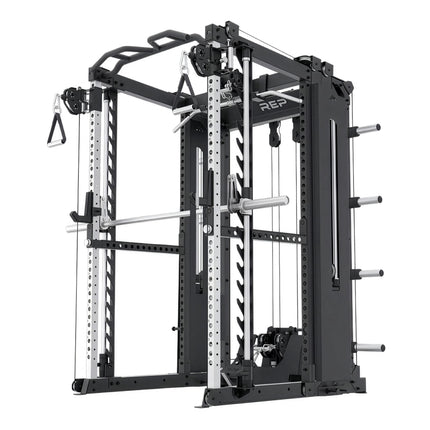

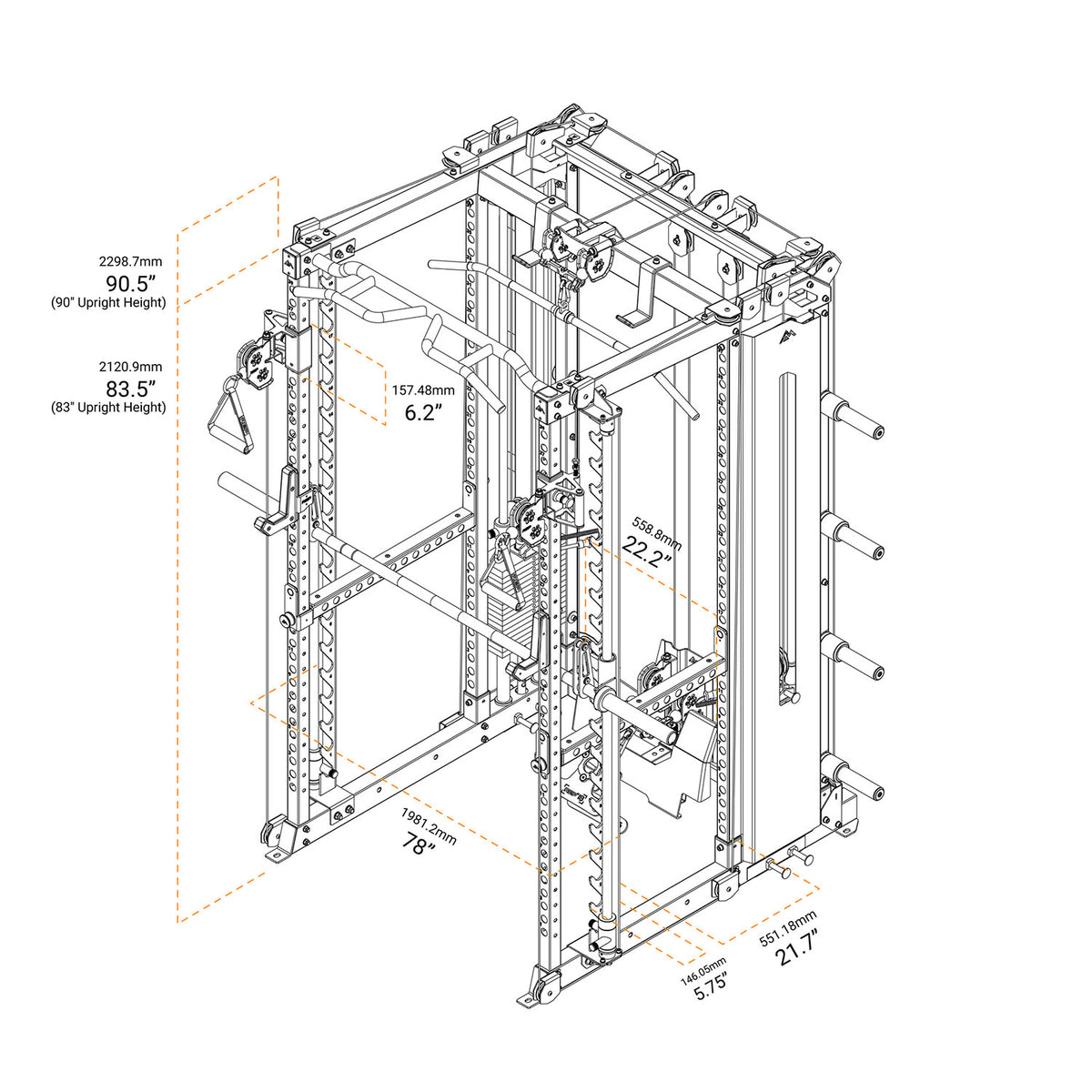

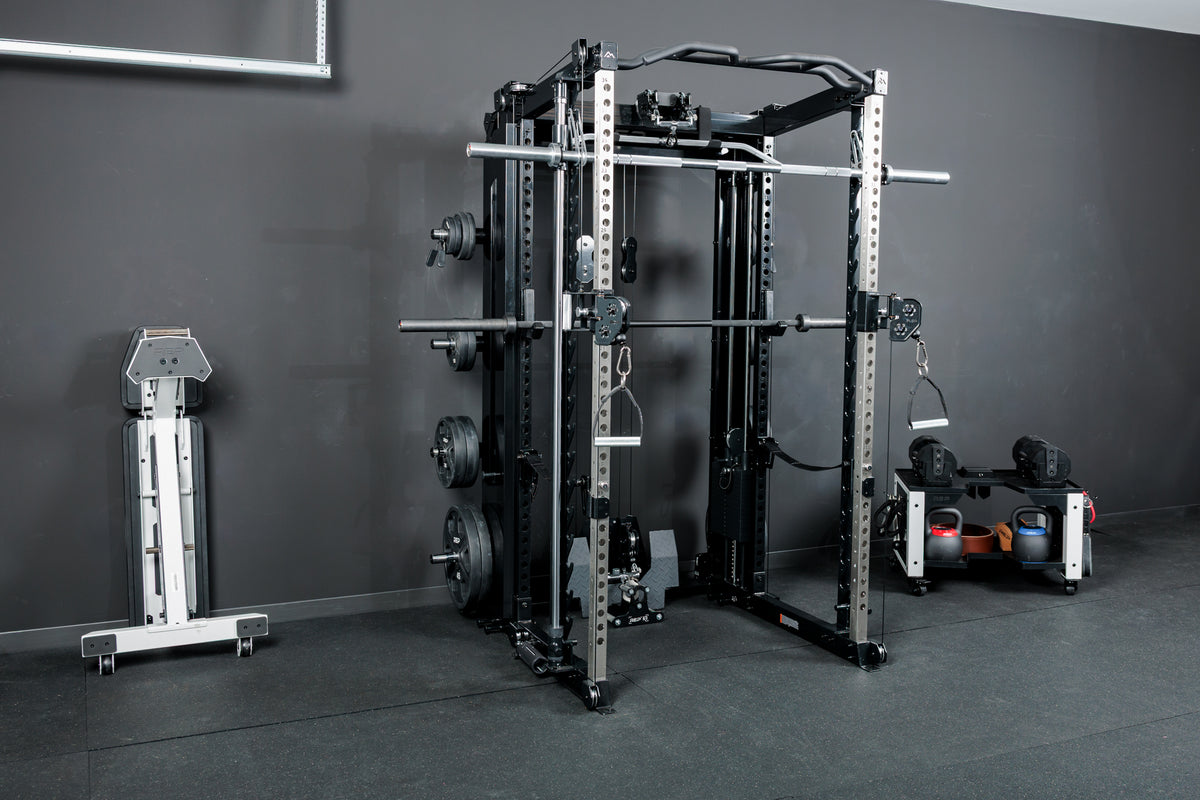

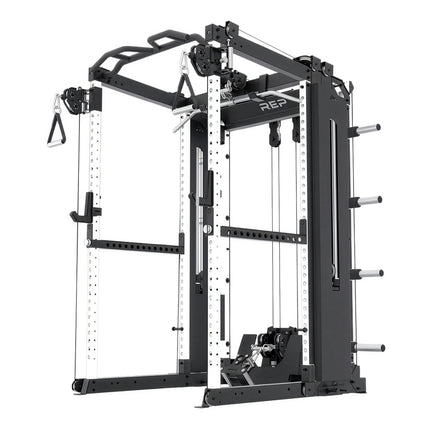

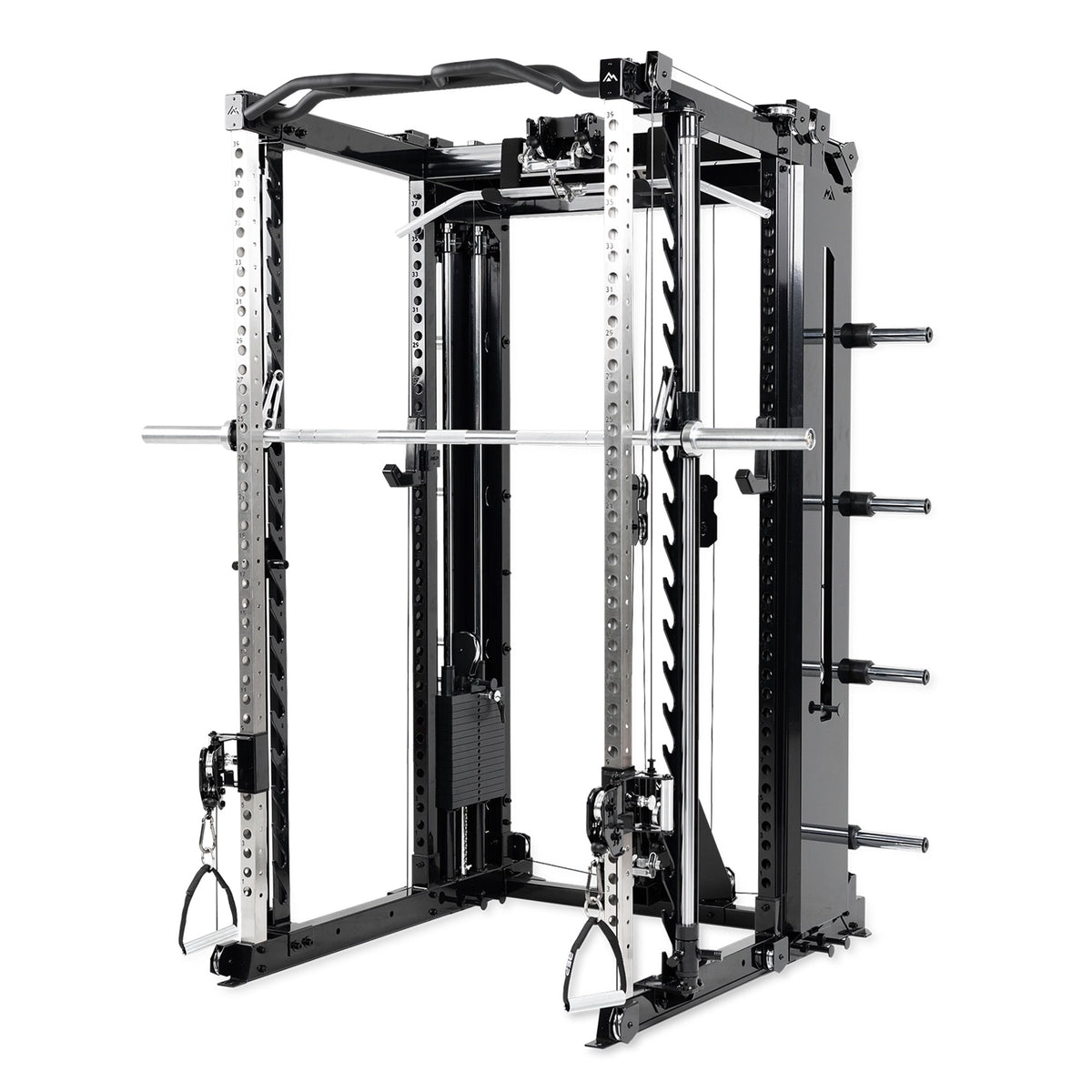

All-in-one rack: Includes all components of the rack, smith machine, and functional trainer configurations

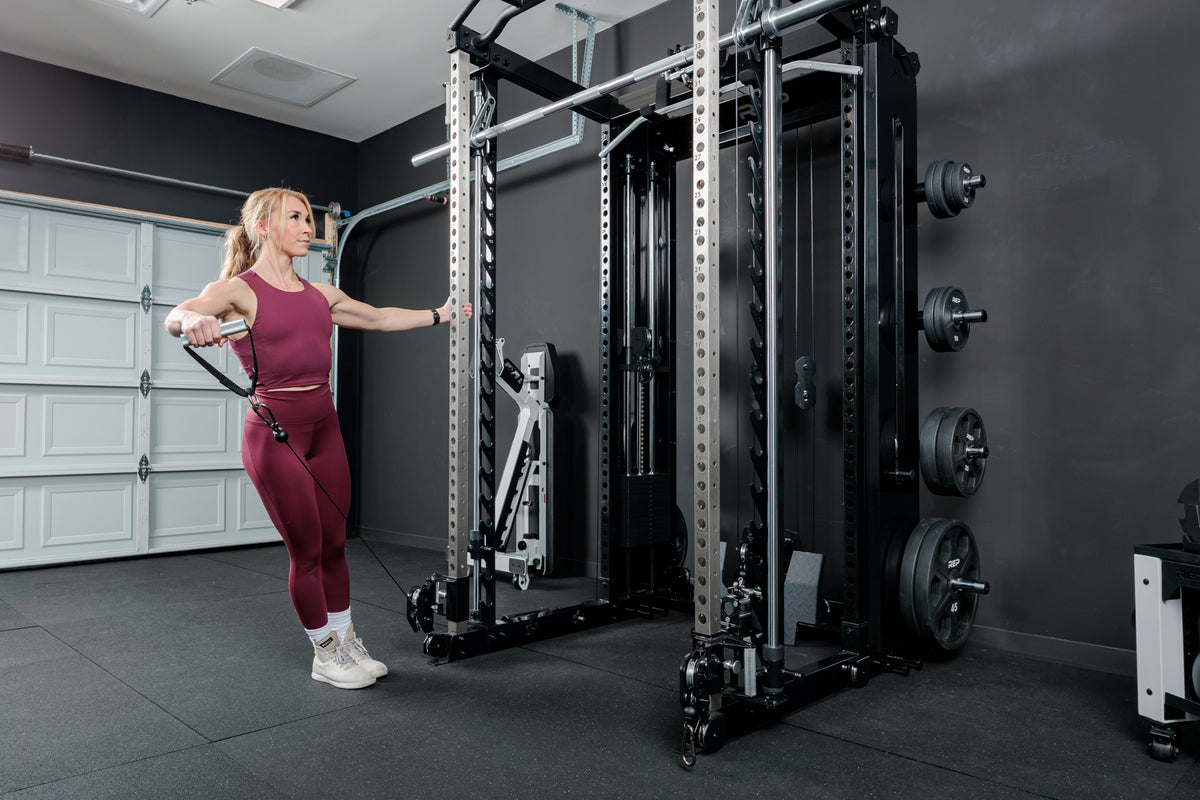

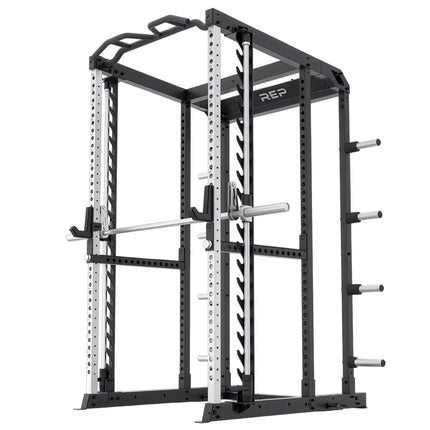

*For the stainless steel color option, only the front uprights feature a stainless steel finish. The center and rear uprights are finished in metallic black.
Product specifications
| Weight |
●211cm type rack only: 104kg
Rack + Smith machine: 204kg
Rack + Functional trainer: 453kg
All-in-one rack: 530kg
●229cm type rack only: 107kg
Rack + Smith machine: 228kg
Rack + Functional trainer: 455kg
All-in-one rack: 550kg
|

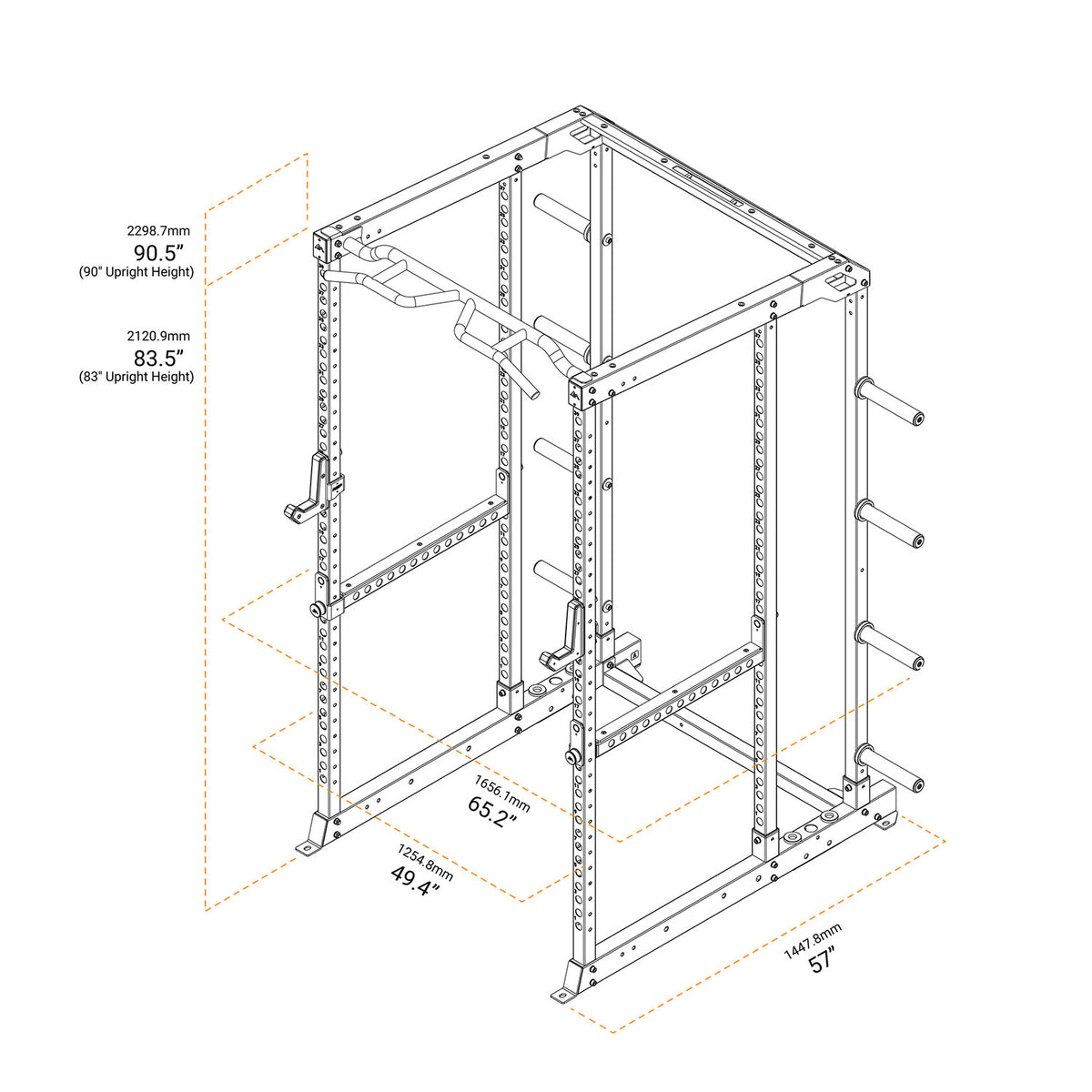

| Height |
211cm or 229cm (+1cm for pull-up bar) |
| Width |
External dimensions: 125cm (166cm including weight horn)
Inner dimensions: 115cm
|
| Depth |
145cm |
| Depth of safety part |
Without Smith machine: 74cm
Smith machine available: 55cm |

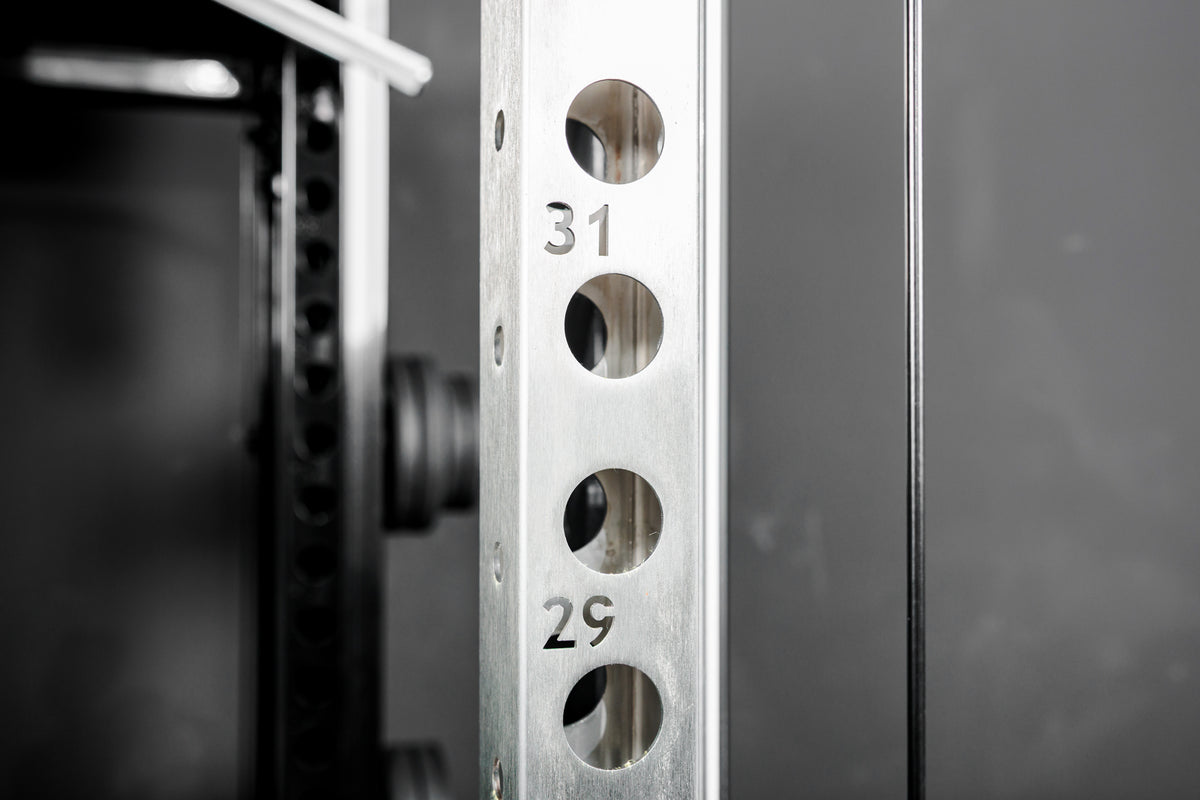

| Hole Size |
1" - 2.54cm |
| Hole Spacing |
2" - 5.08cm |
| Material |
2x2" 14 gauge steel & 11 gauge steel |
| Surface Treatment |
Powder Coating |
| Load-bearing capacity |
Power rack: 318 kg
Smith machine: 181kg
Functional Trainer: 159 kg |
