Description
The ATX Fitness Smith Machine Half Rack 700 Series is a professional-grade system that combines a precision-engineered, ultra-smooth Smith machine with a high-strength commercial half rack.
Constructed from 70×70×3 mm heavy-duty steel tubing, the rack offers exceptional rigidity and stability. It’s built to withstand intense, high-load training—perfect not only for commercial gyms but also for advanced home gym users who demand professional performance.
The integrated Smith machine operates on four linear ball bearings, delivering incredibly smooth movement throughout the range. The bar height can be adjusted across 12 positions, and the system supports up to 200 kg. The barbell features a 32 mm shaft with knurling and alignment marks, finished in sleek black chrome.
The uprights feature 50 mm hole spacing, allowing fine adjustment for the included J-cups and spotter arms. The 21 mm hole diameter is compatible with all other ATX rack systems, enabling a wide range of attachments—including lat pulldown and other accessory options—for enhanced functionality.
The multi-grip pull-up bar features a comfortable knurled surface and a 200 kg load capacity, making it suitable for weighted pull-ups and advanced training.
For storage, the rack comes equipped with 10 weight plate holders and 2 barbell holders, keeping your training area organized and efficient.
*This product requires assembly. ATX products do not come with tools, so please prepare them separately.

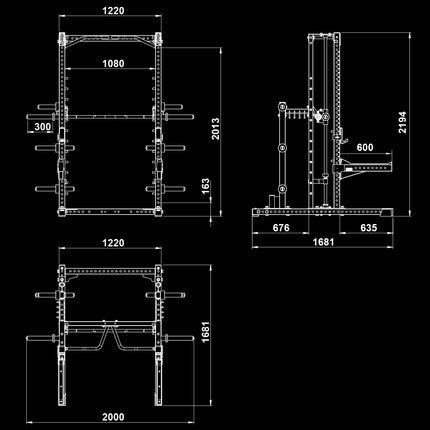

Product specifications
| Weight |
180kg |
| Height |
219.5cm |
| Width |
200cm (external dimensions of rack width: 122cm) |
| Depth |
168cm |
| Hole size |
21mm |
| Hole Spacing |
50mm |
| Material |
70 x 70 x 3mm steel |
| Surface Treatment |
Powder Coating |
| Load capacity (stationary) |
Smith machine: 200kg
J-cup: 500kg / Pair safety: 400kg / Pair pull-up bar: 200kg |
| Accessories |
Weight horn x 10 ( 50mm diameter)
2 barbell holders ( 50mm diameter) |
