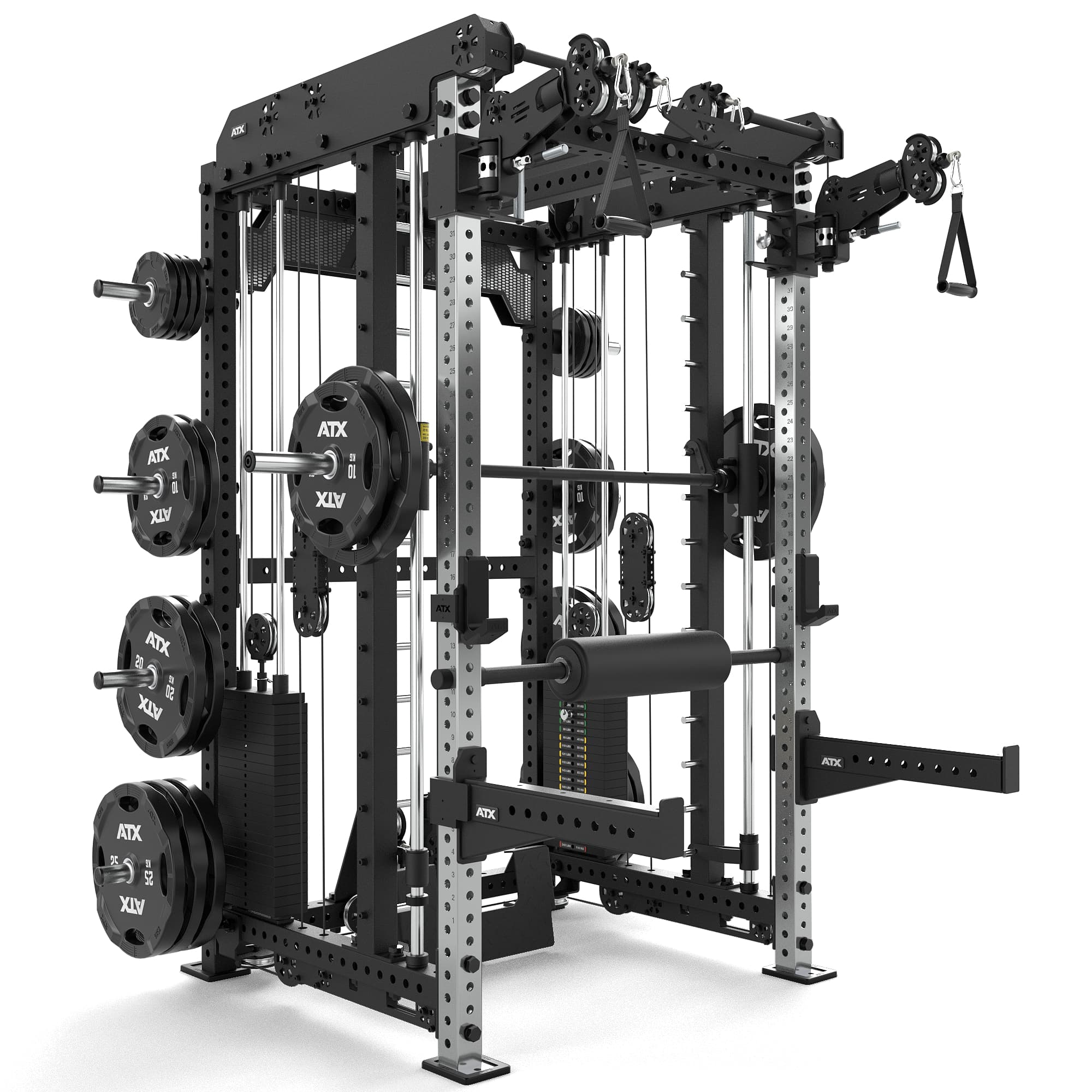

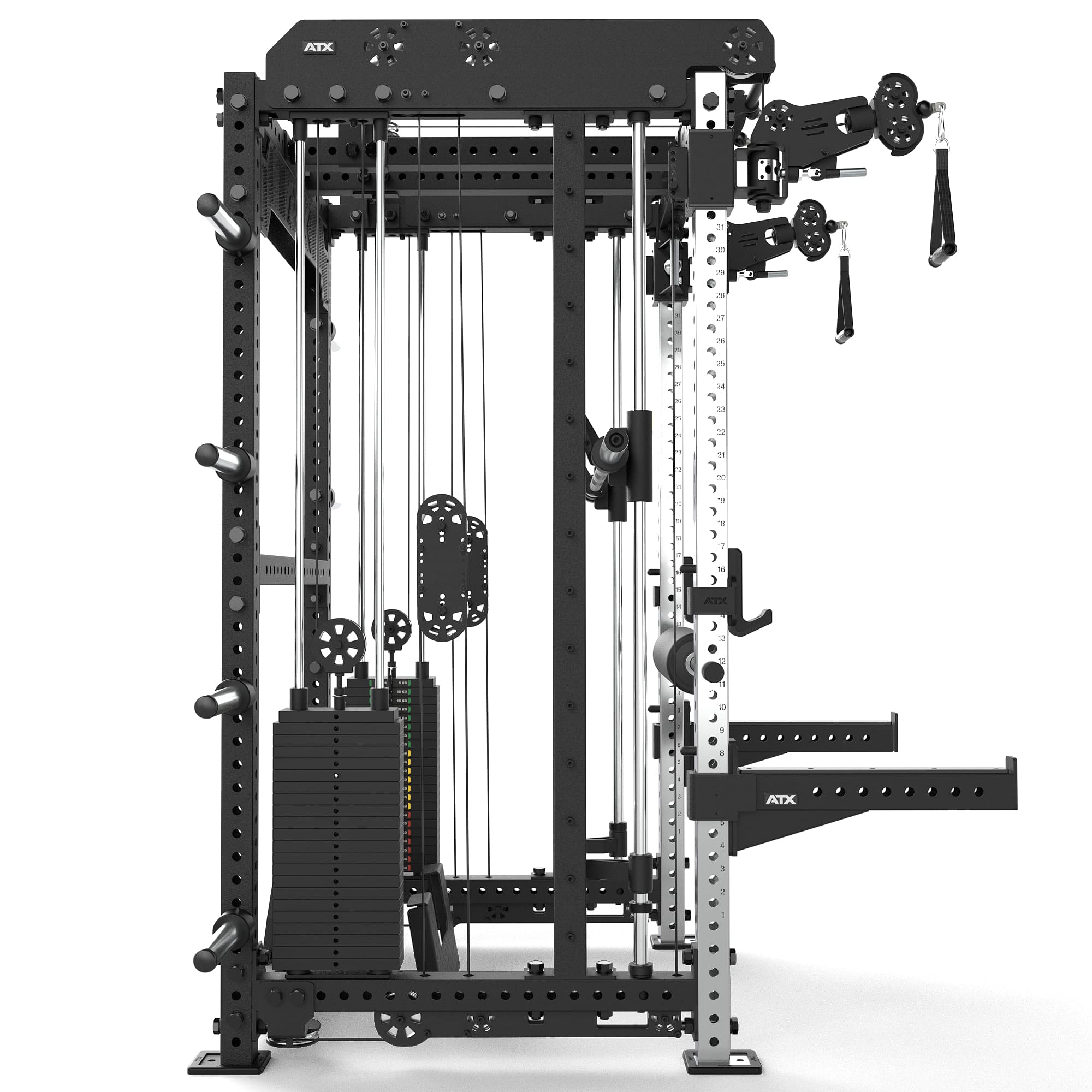

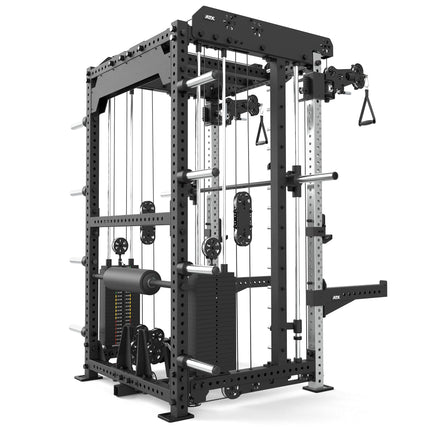

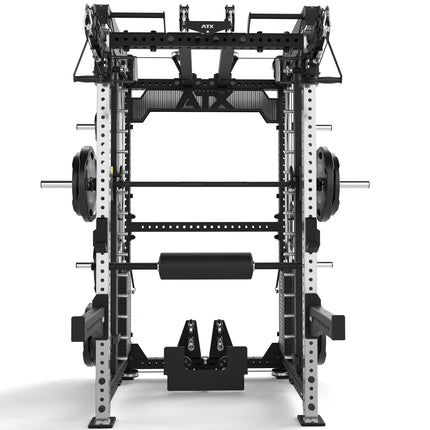

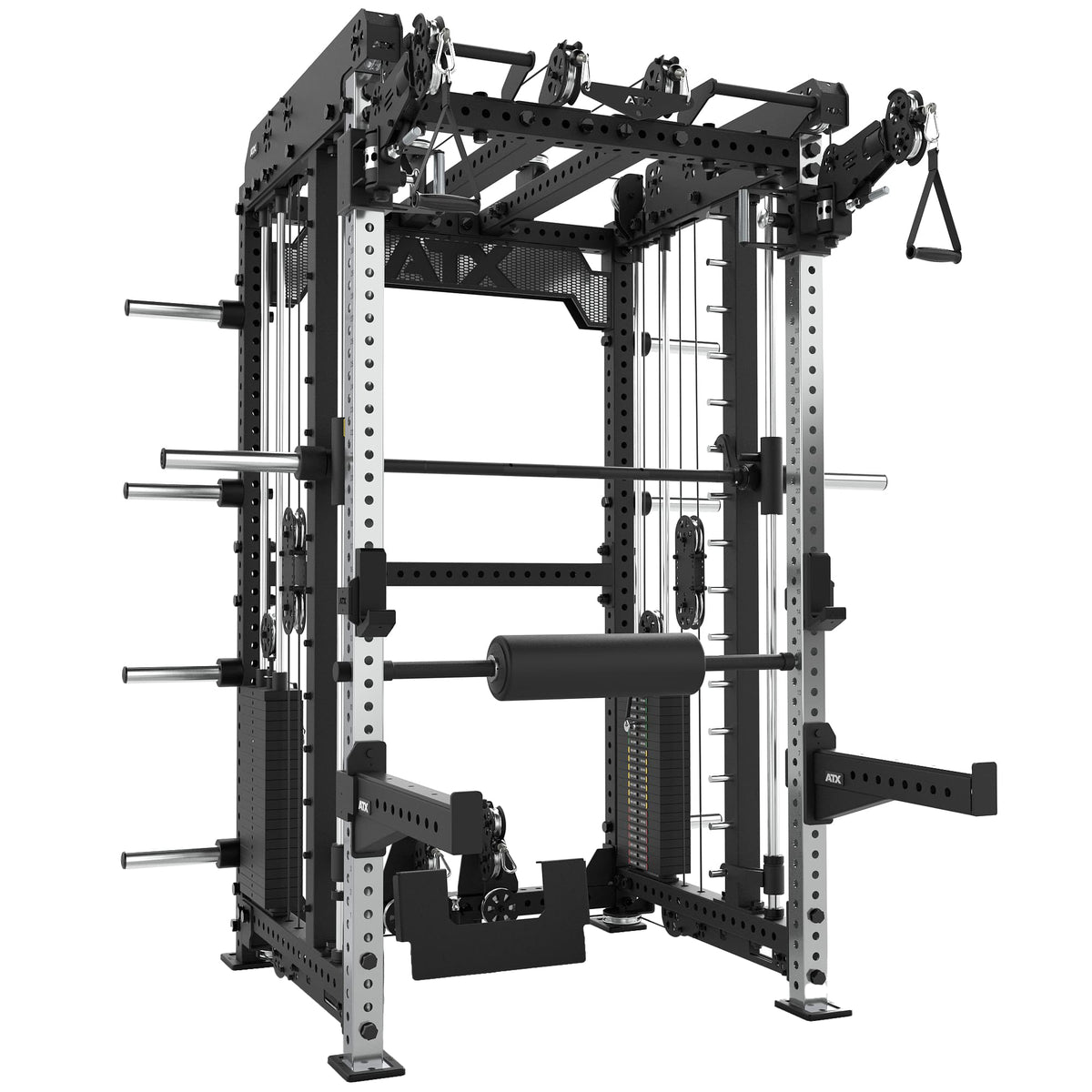

The ATX Fitness Multiple Smith Rack is the ultimate all-in-one rack that combines a half rack, Smith machine, lat pull & low row, and functional trainer. Its space-saving design makes it ideal for personal gyms and elite home gyms.

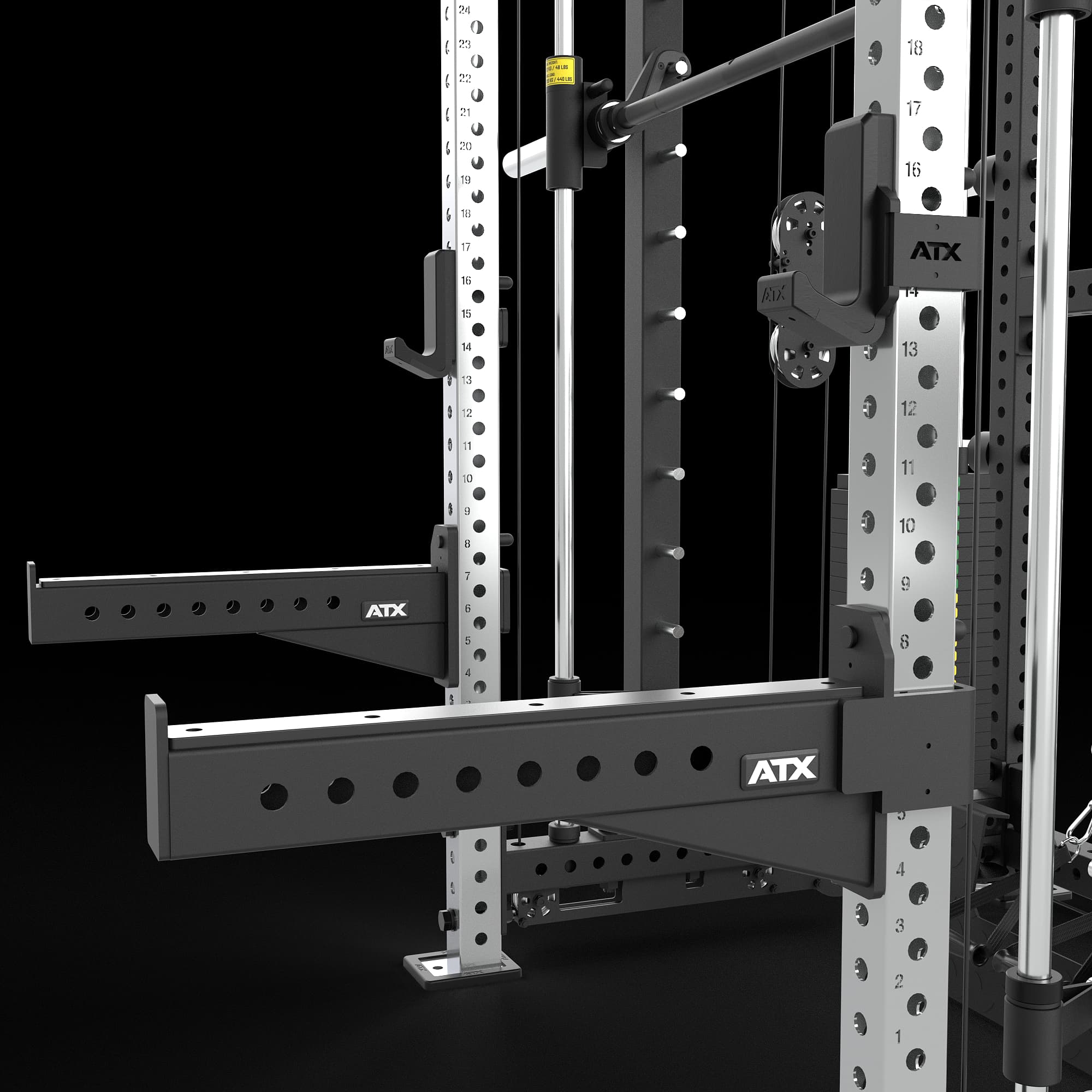

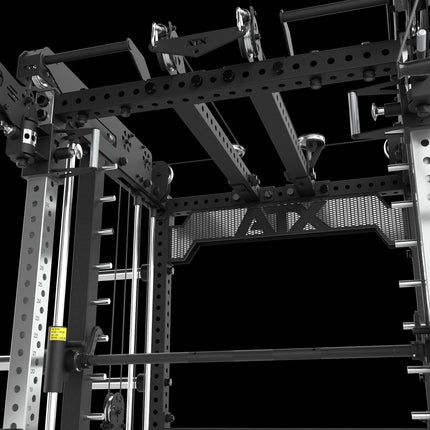

The frame is made of 70 x 70 x 3mm thick steel tubes, and can withstand a maximum load of over 1000kg. The total weight is 645kg, so it is very stable even without anchoring. The front frame is made of stainless steel and is laser numbered. The hole space is 50mm, and the height of the J hook, spotter arm, and leg roller can be precisely adjusted.

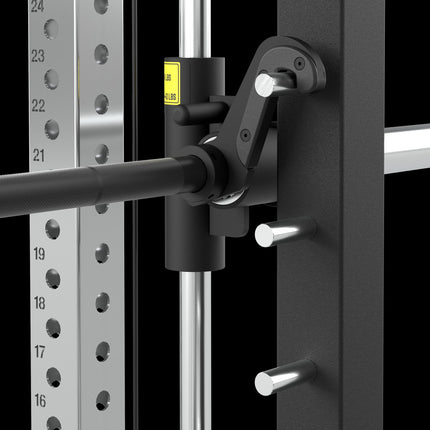

The Smith machine with built-in rack features a 30mm diameter solid steel guide shaft and 4-row linear ball bearings for extremely smooth and stable operation. The barbell is 20kg and can accommodate 50mm diameter weight plates (200kg load capacity). The shaft is 30mm diameter, knurled and marked, and finished in black chrome.

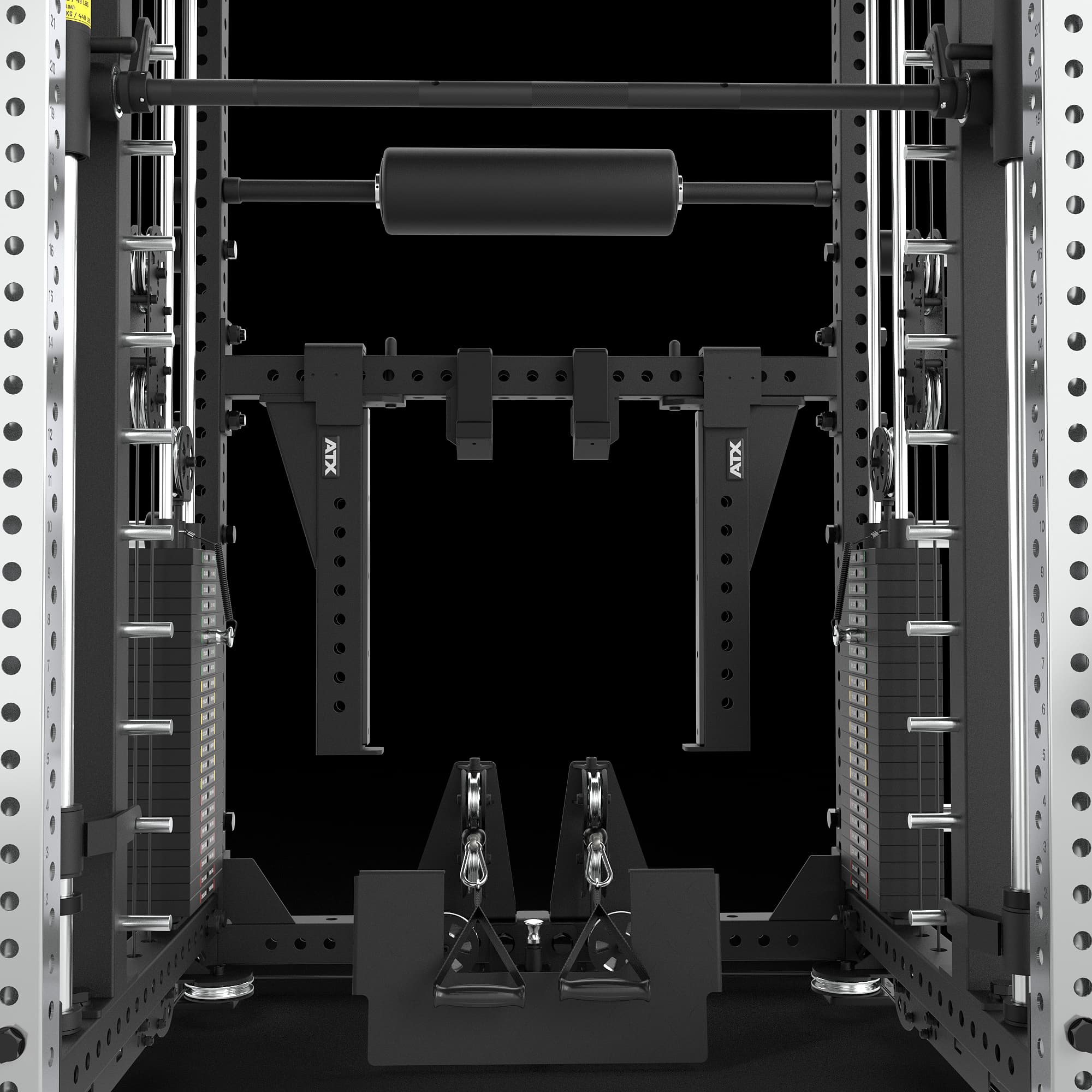

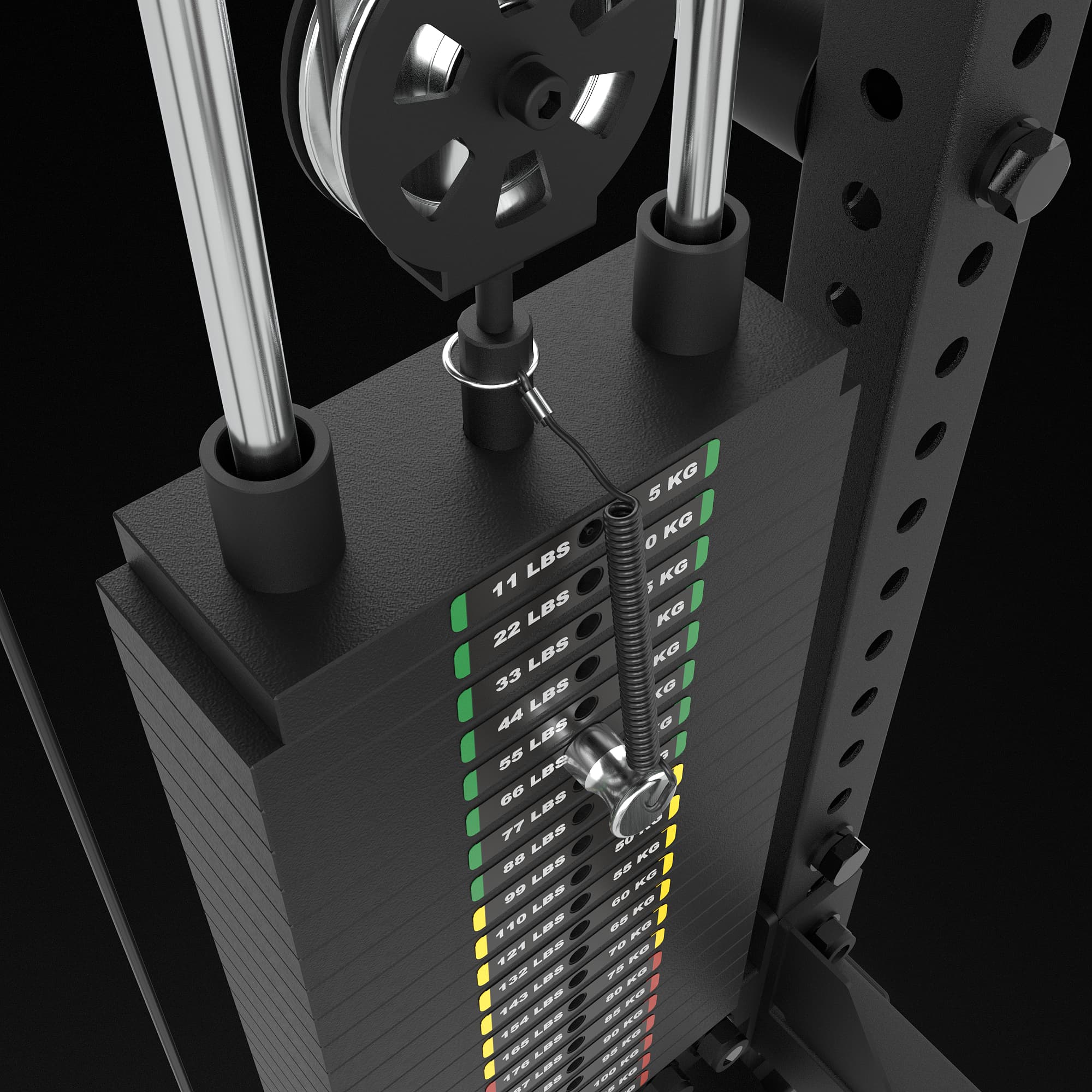

All pulleys are 110kg each ( It is connected to a weight stack with a resistance ratio of 2:1, making it suitable for a variety of cable exercises. The two pulley points on the top and bottom allow independent left and right movement, and the included connector allows for training such as lat pulldowns and seated rows.

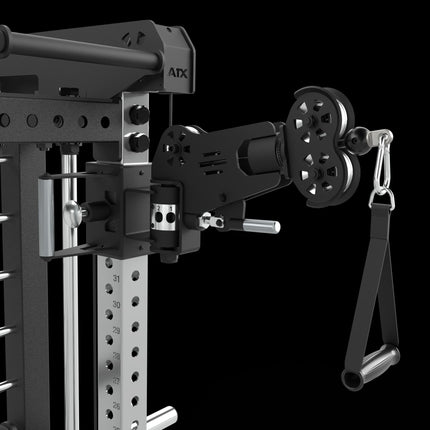

In addition, the JIB arm (trolley part), developed exclusively by ATX, allows you to adjust the angle of the horizontal rotation axis, ensuring maximum range of motion when performing exercises such as cable crossovers.

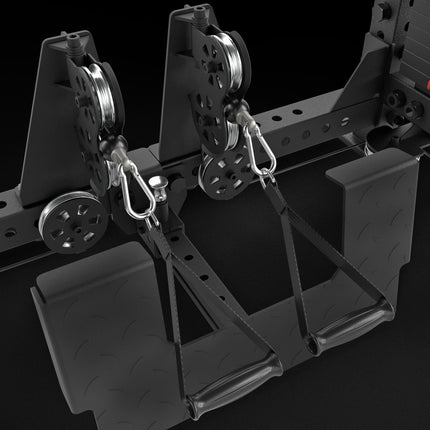

The cable system incorporates heavy-duty ball-bearing aluminium pulleys and low-stretch steel cables with a protective coating for ultra-smooth operation.

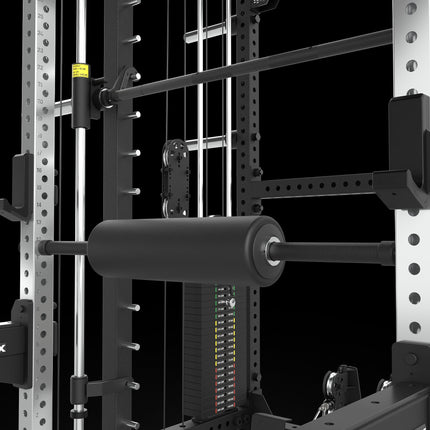

The rack's legs are protected with rubber pads to prevent slipping and to prevent damage to the floor.

*This product requires assembly. ATX products do not come with tools, so please prepare them separately.

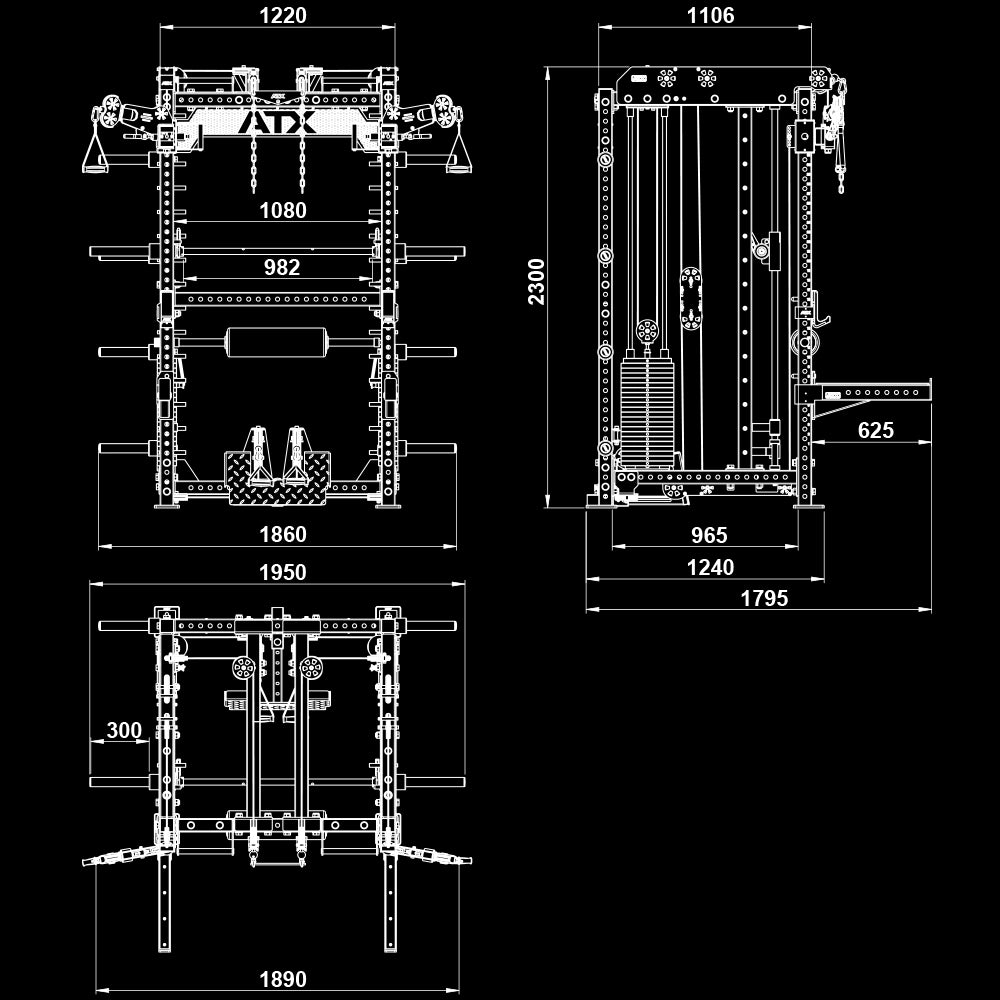

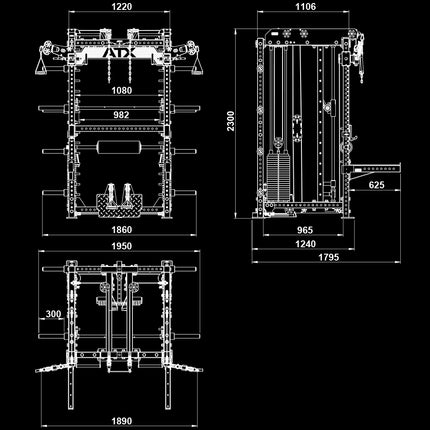

Product specifications/specs
