Description

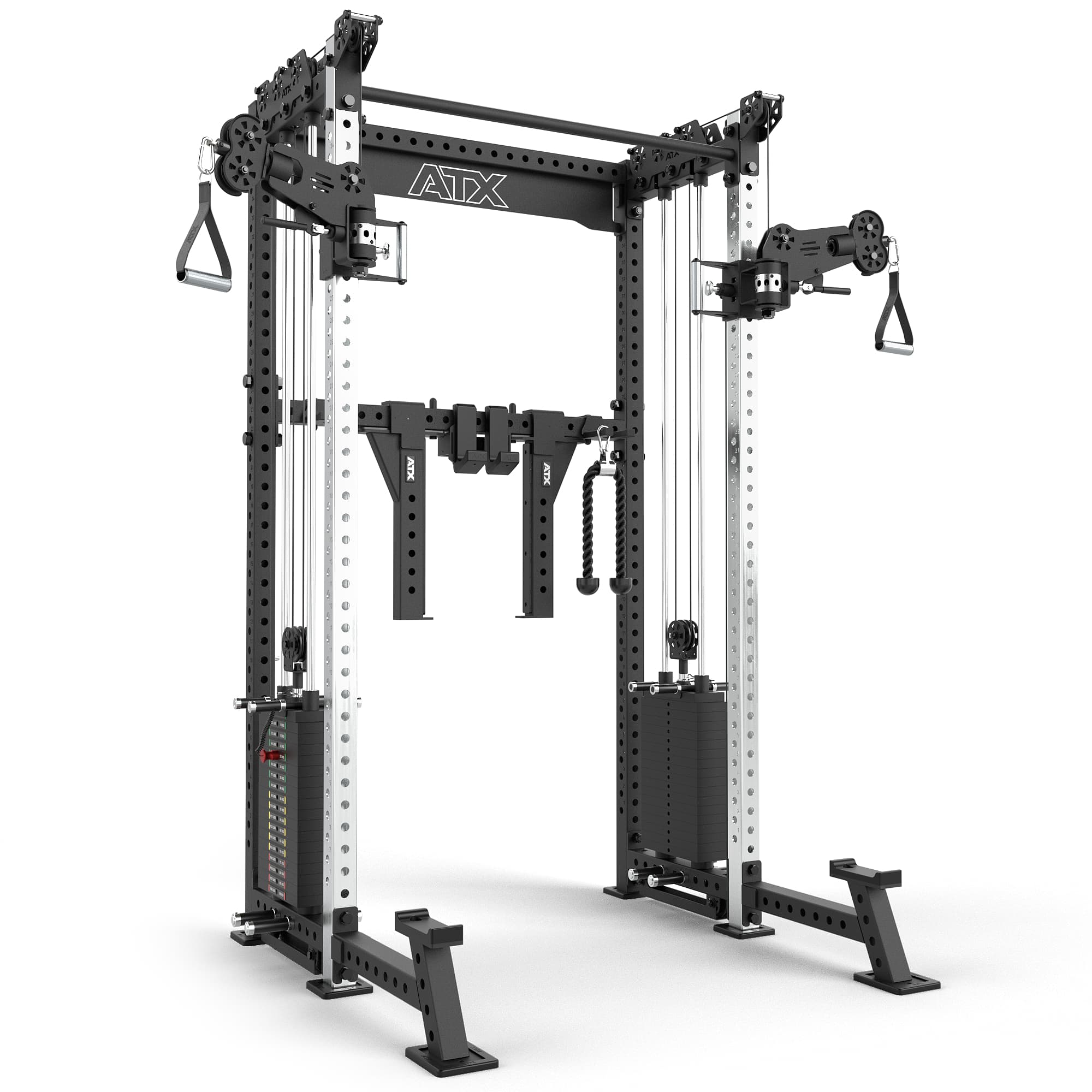

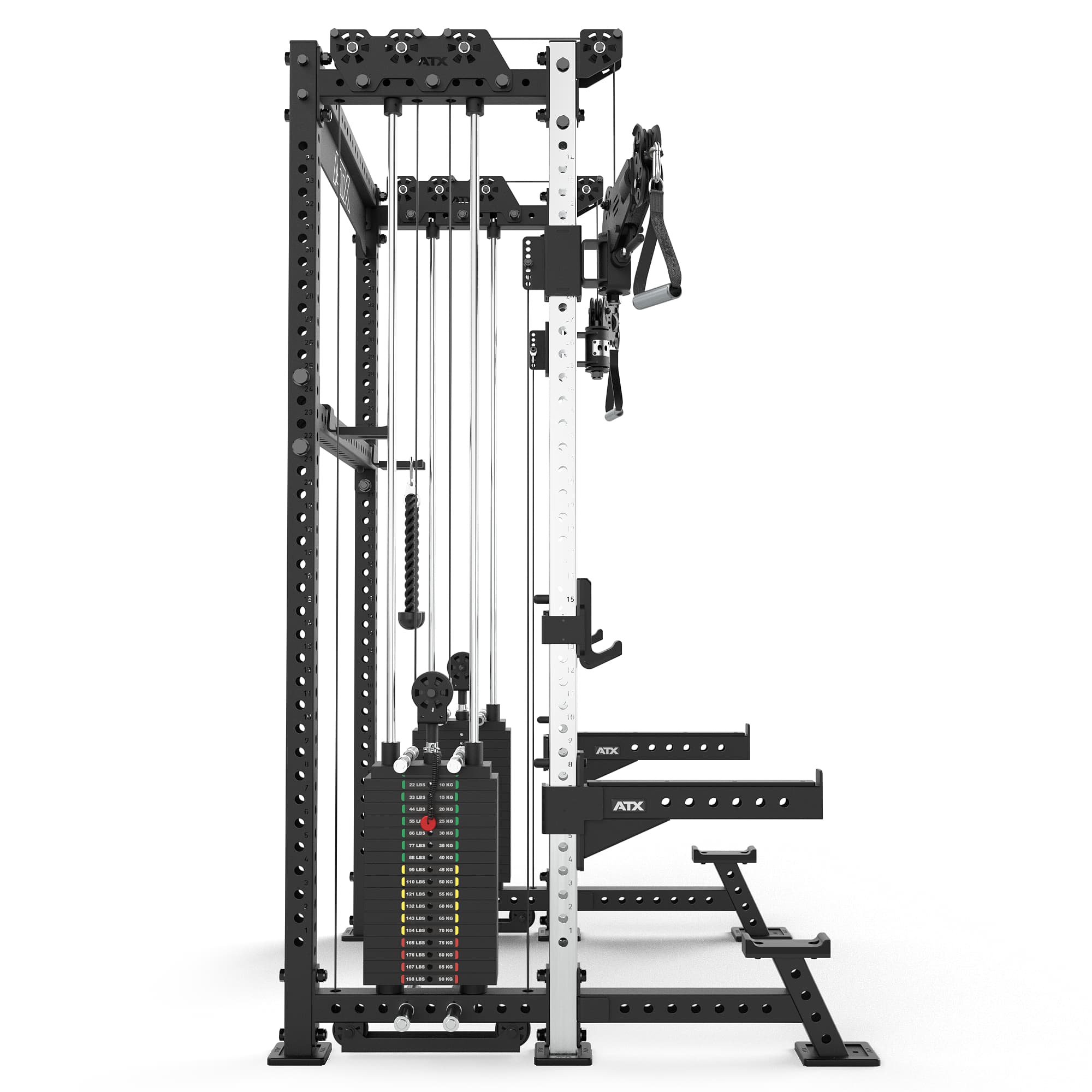

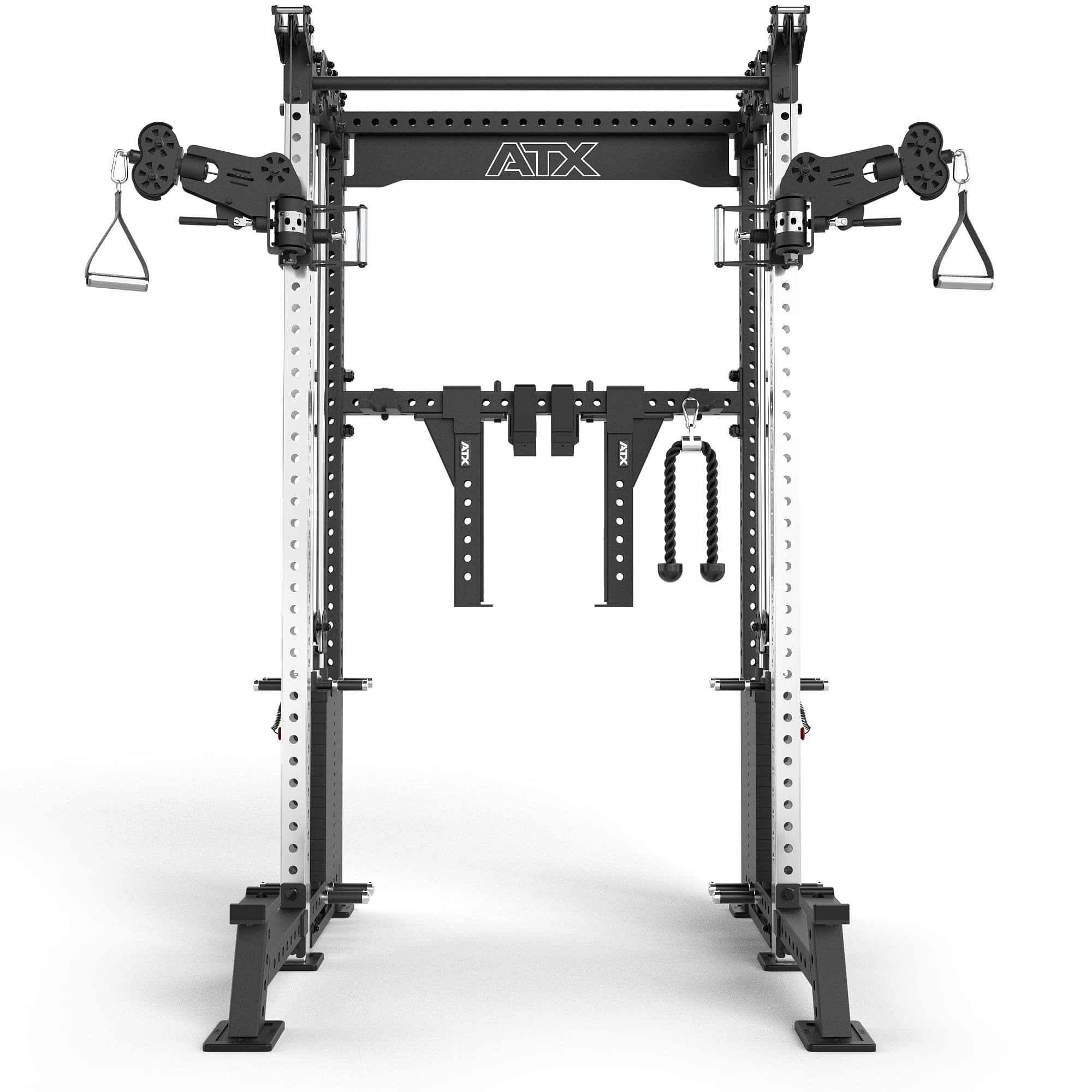

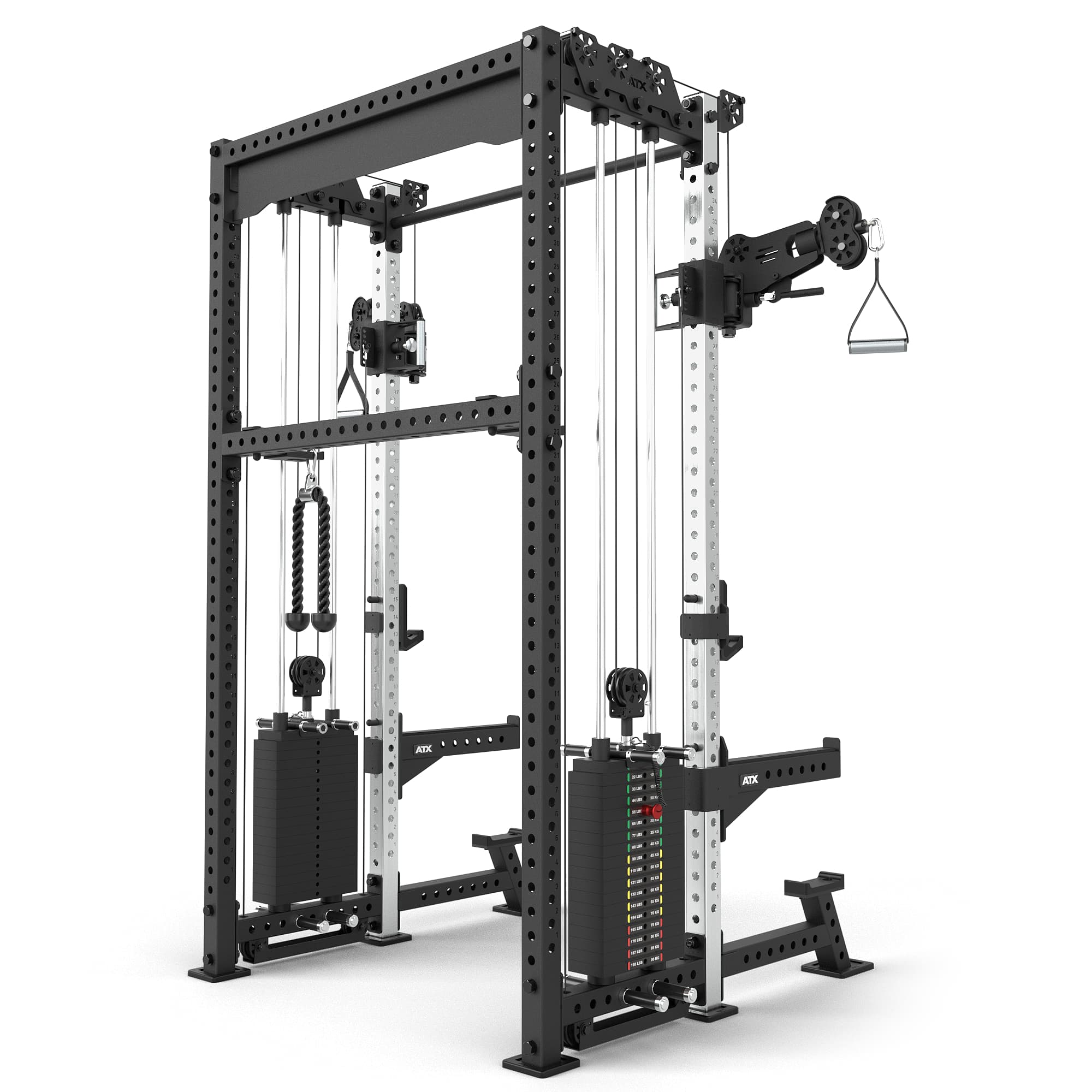

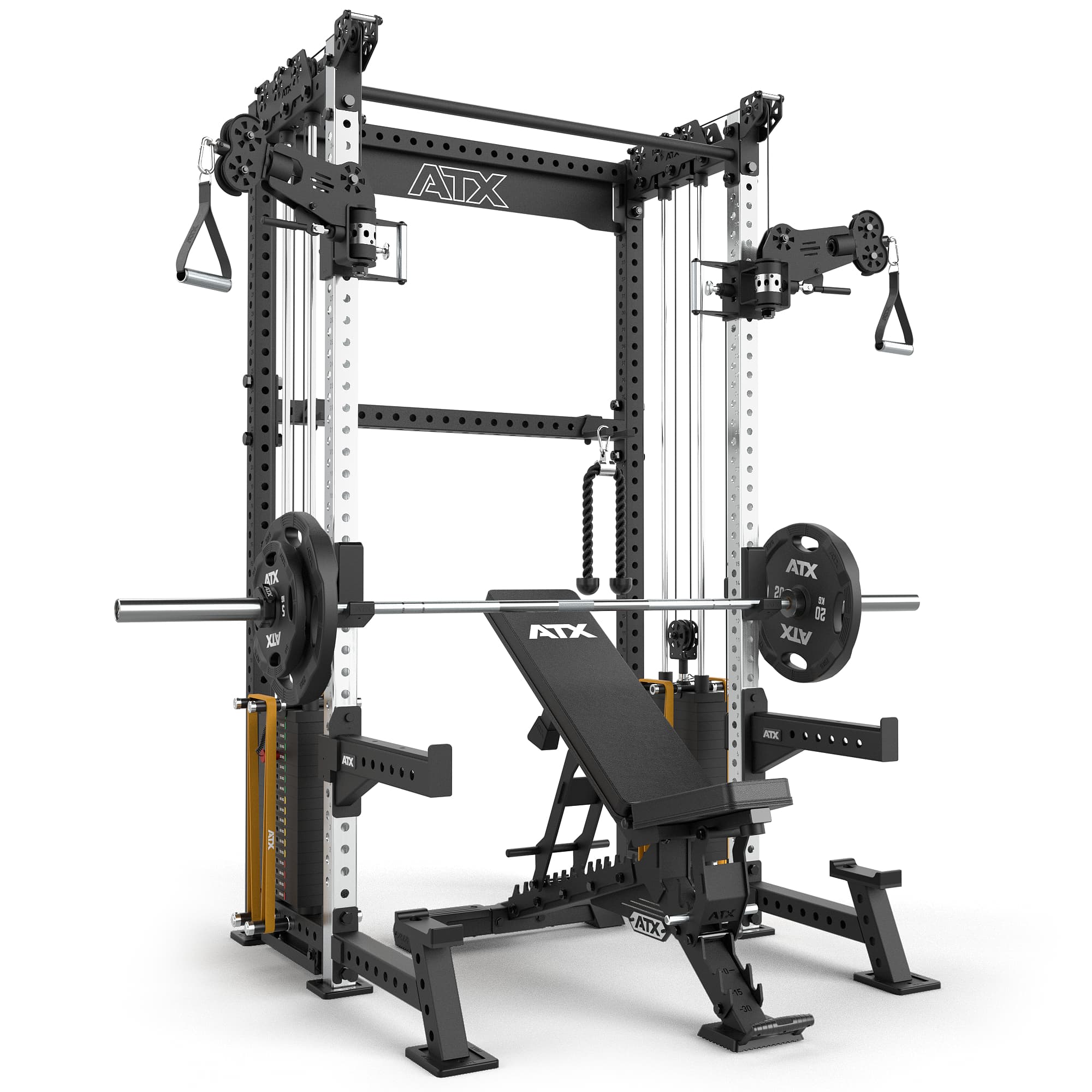

The ATX Fitness 600 Series Cable Half Rack is a versatile training station that seamlessly combines a half rack with a functional trainer. Its space-efficient design makes it an excellent choice for personal training studios and high-end home gyms.

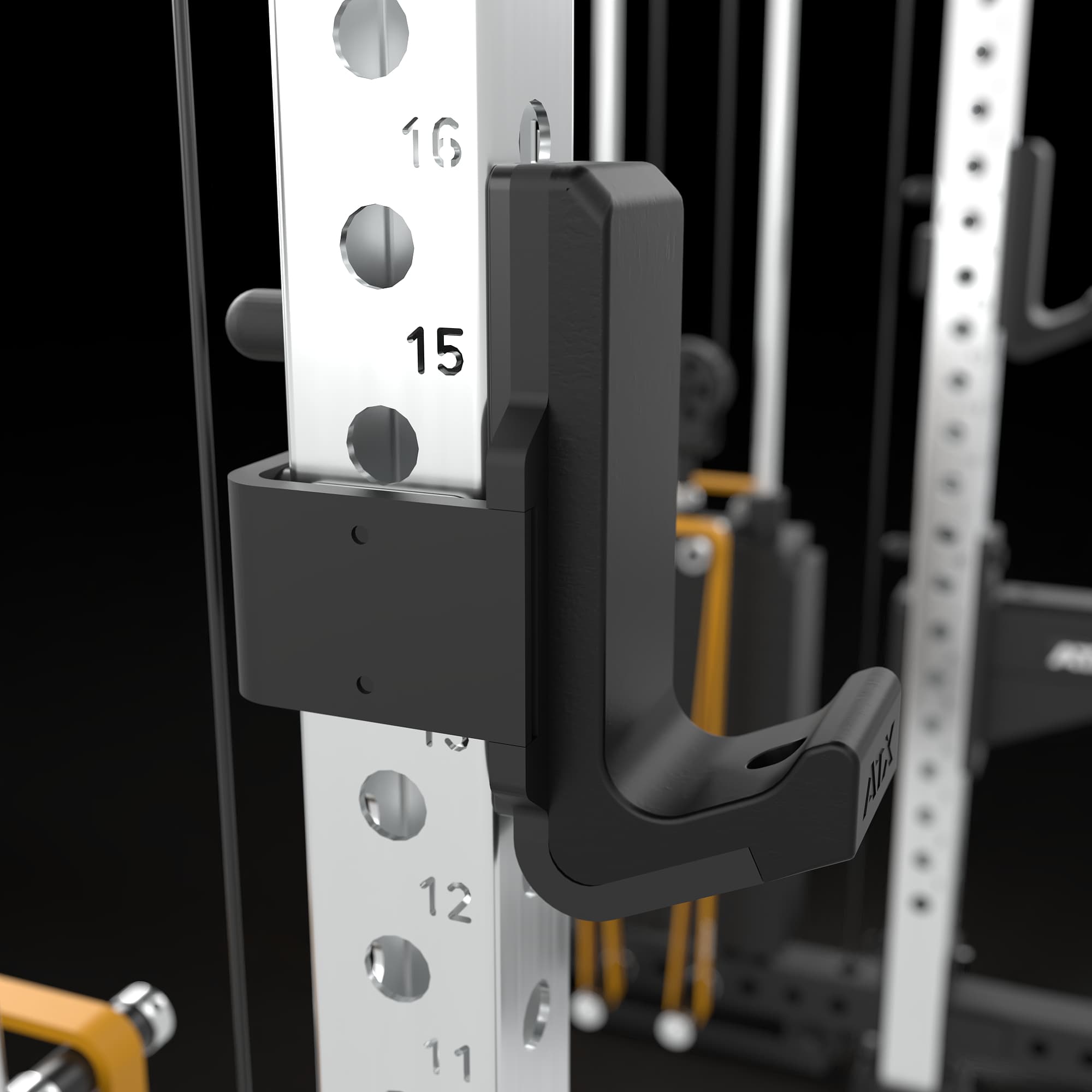

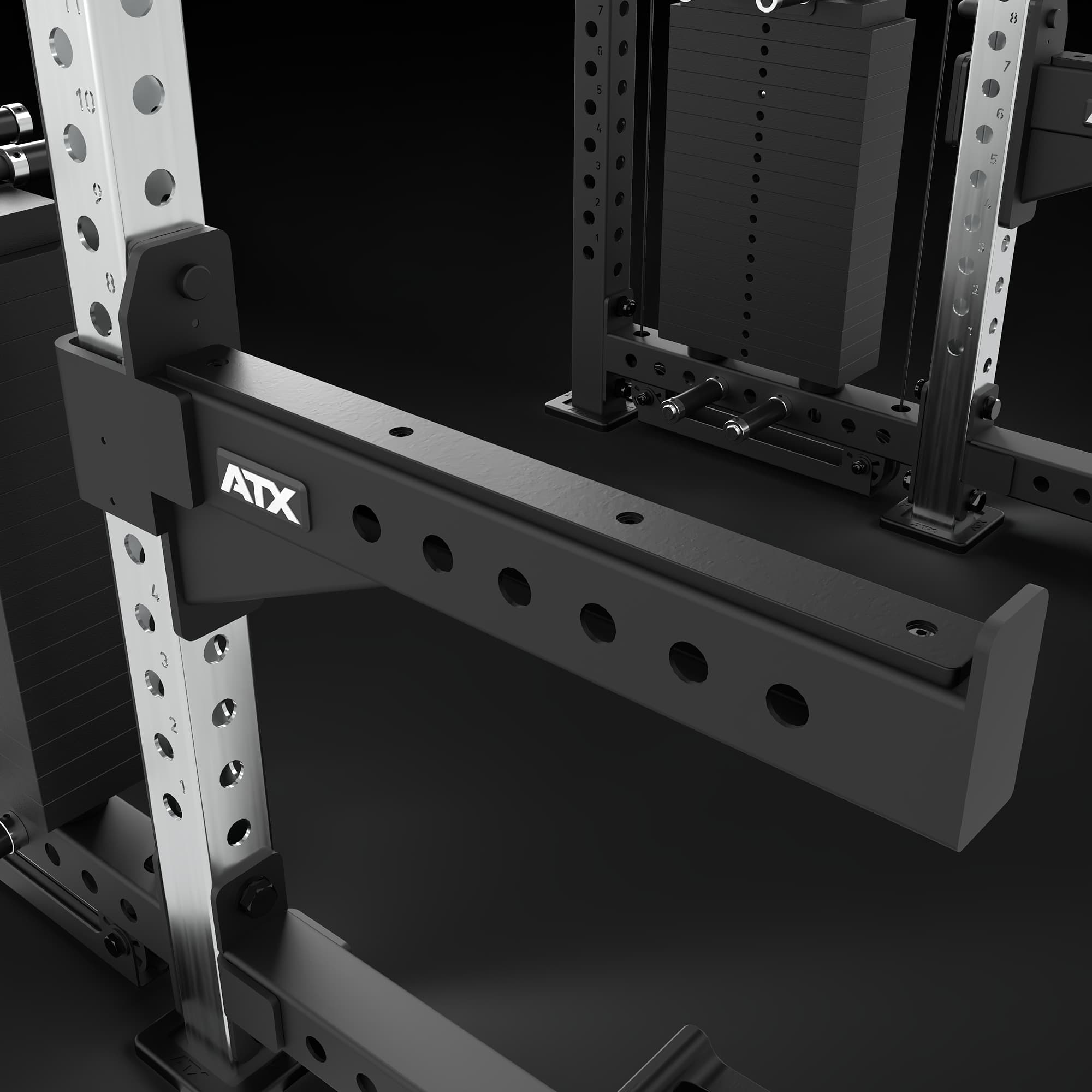

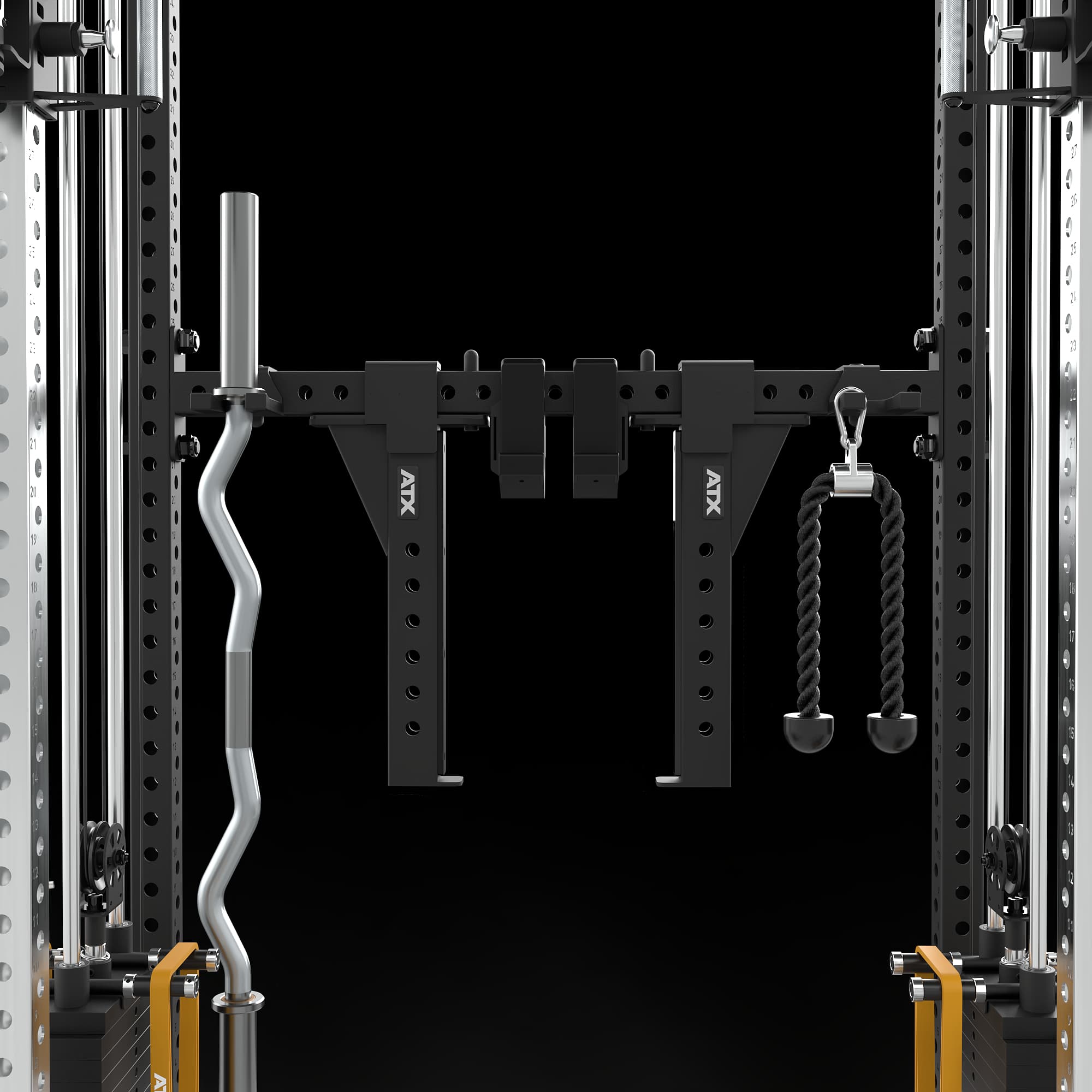

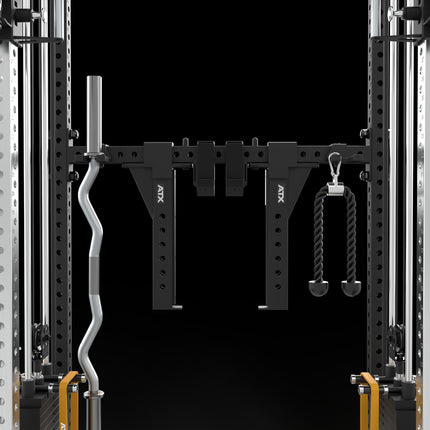

The rack is built from heavy-duty 60 × 60 × 3 mm steel tubing and offers a maximum load capacity of 400 kg. With 50 mm hole spacing, the J-hooks, safety spotter arms, and cable trolley can be adjusted with precision to suit a wide range of users and exercises.

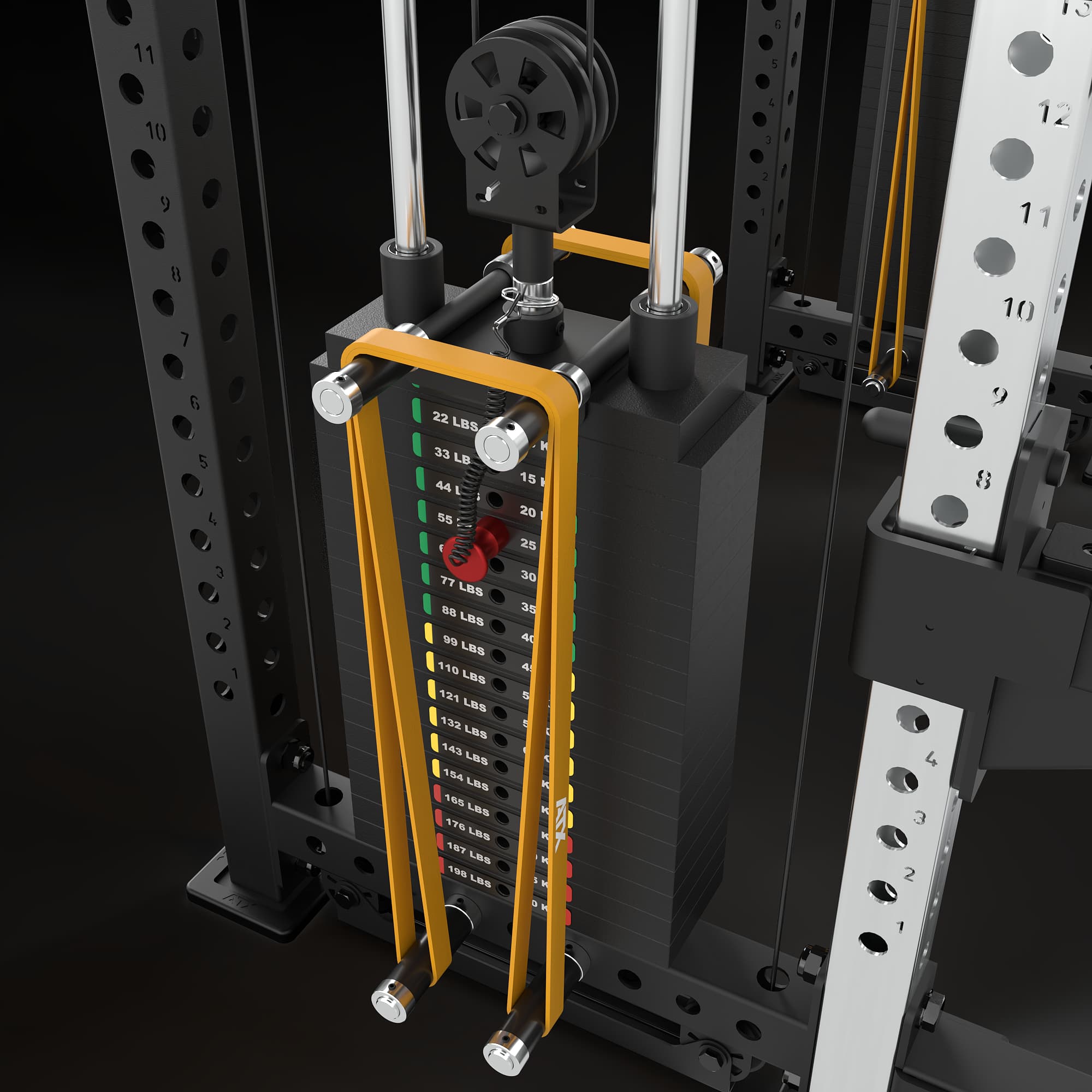

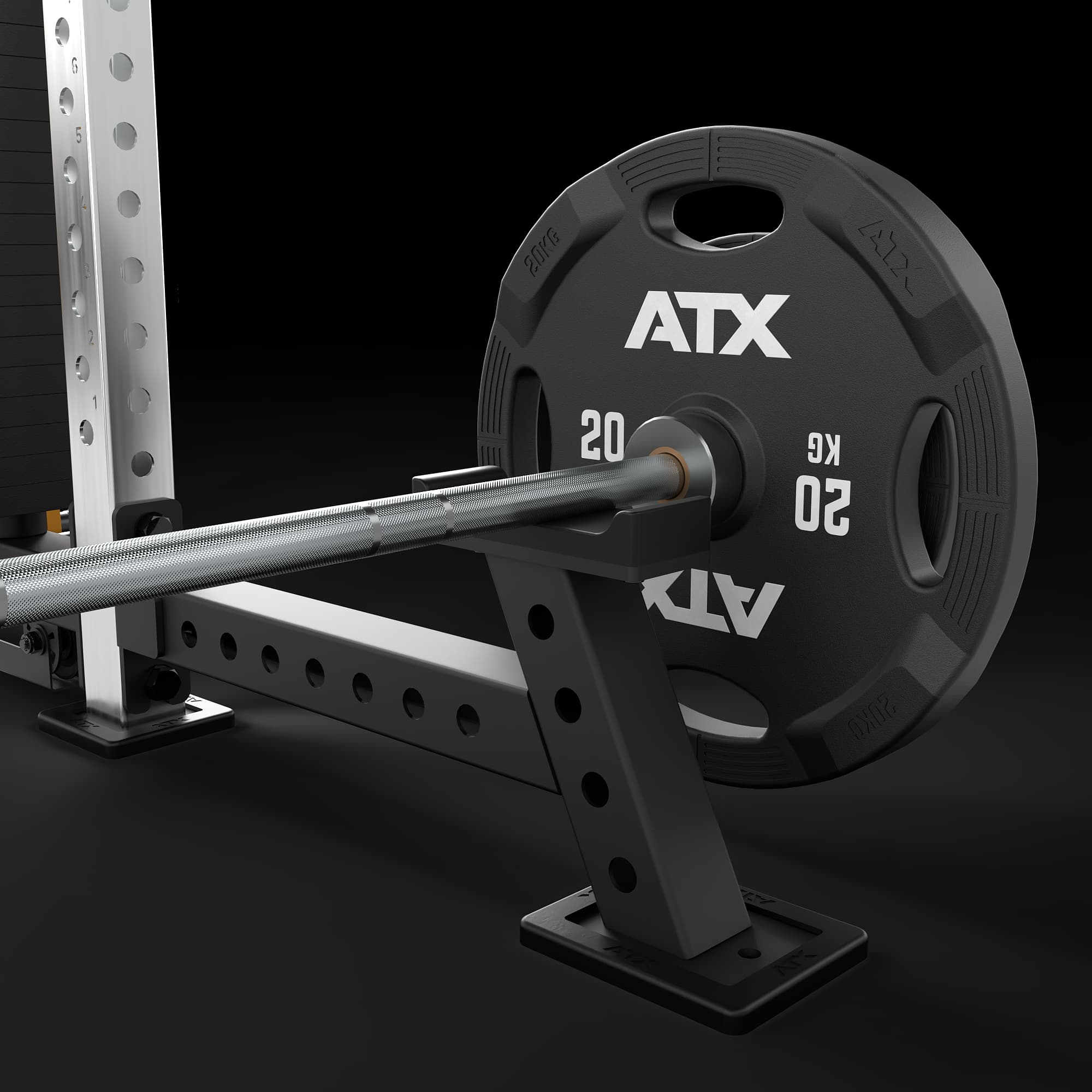

The front of the rack also incorporates a dedicated deadlift station with protective barbell pads. Height-adjustable front-mounted pulleys with a 2:1 resistance ratio support a wide variety of cable exercises, while the integrated weight stacks provide 90 kg per side, adjustable in 5 kg increments.

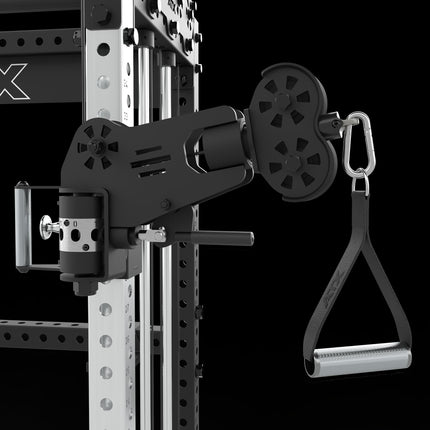

ATX’s proprietary swiveling extension arms allow the horizontal rotation angle to be adjusted, ensuring an exceptional range of motion for movements such as cable crossovers and other functional exercises.
The rack feet are fitted with durable rubber pads to prevent slipping and to protect the floor surface. Assembly is required.
*ATX products do not include tools, so please prepare the necessary tools in advance.

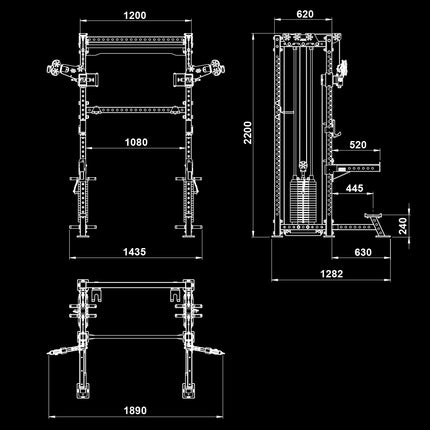

Product specifications
| Weight |
335kg |
| Height |
220cm |
| Width |
189cm (external rack width 120cm) |
| Depth |
128.2cm |
| Hole size |
21mm |
| Hole spacing |
50mm |
| Material |
60 x 60 x 3mm steel |
| Surface Treatment |
Powder coated, chrome plated (front pillar) |
| Load capacity (stationary) |
J-cup: 500kg / Pair safety: 300kg / Pair pull-up bar: 200kg |
| Accessories |
1 pair of J-cups
1 pair of spotter arms
Tricep rope x 1
Ankle strap x 1
D-handle x 2
3 carabiners
Weight stack 90kg each side |
